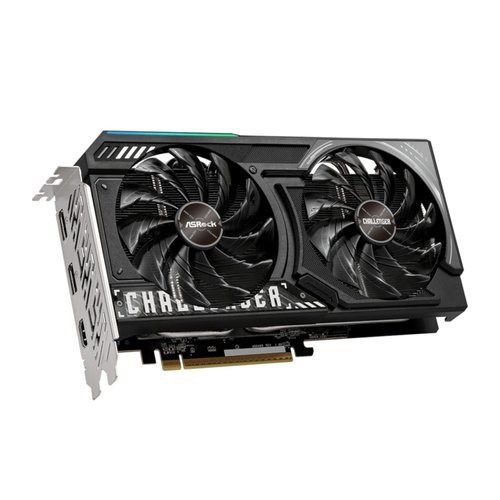

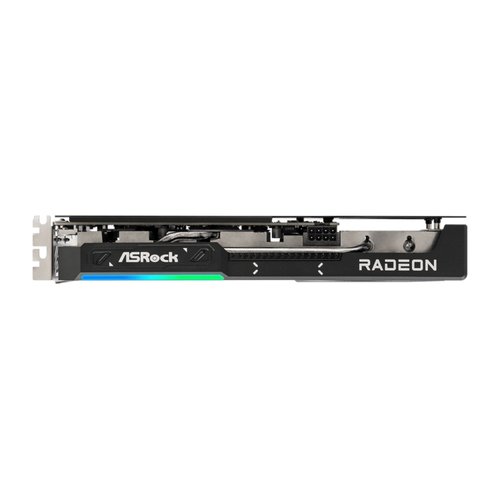

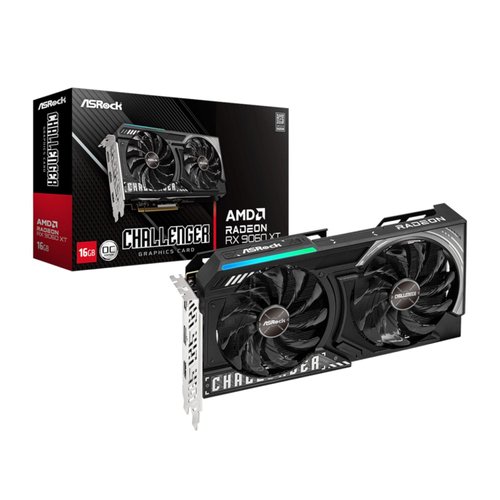

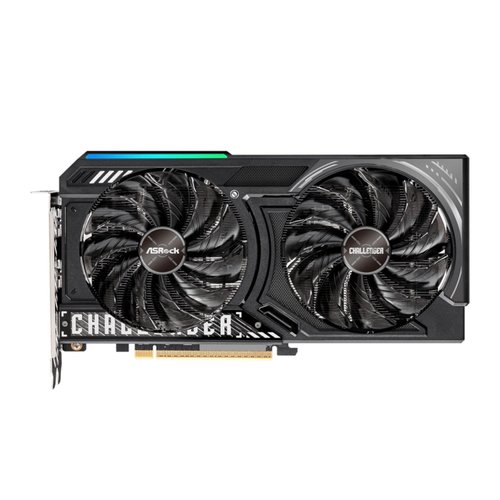

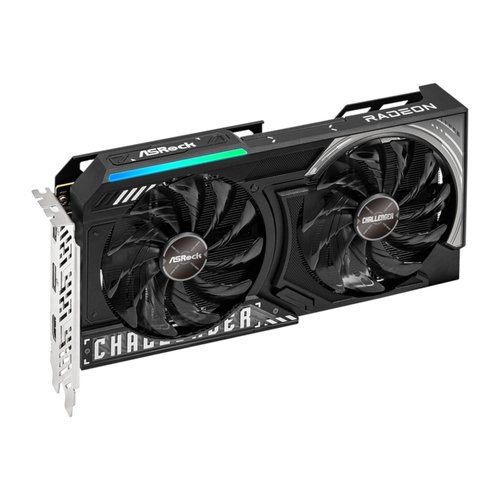

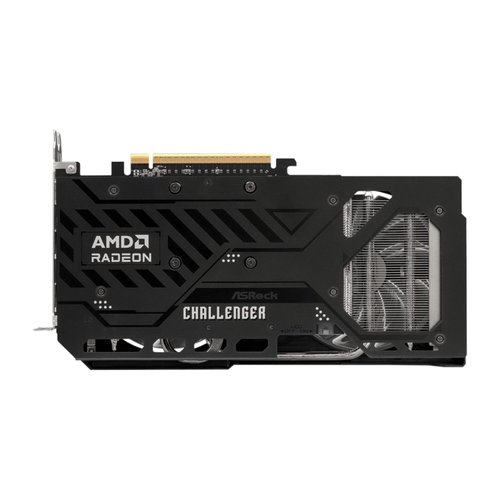

"The ASRock Radeon™ RX 9060 XT Challenger 16GB
OC is more than a graphics card—it’s your new performance anchor. Built
on AMD’s latest RDNA™ 4 architecture and fine-tuned for uncompromising
1440p gaming, this GPU pairs raw silicon muscle with refined
efficiency. Whether you’re pushing frame rates in ray-traced
blockbusters, accelerating AI-enhanced workflows, or streaming crisp,
artefact-free footage, the RX 9060 XT delivers every frame with clarity
and composure. Under the hood, 2,048 Stream Processors and 32 Compute
Units—each equipped with 3rd Gen Ray Accelerators and 2nd Gen AI
Accelerators—form the computational backbone of the card. Bolstered by
a Boost Clock of up to 3290MHz and a blazing-fast 16GB of GDDR6 memory
running at 20Gbps, the RX 9060 XT is primed for high-intensity
scenarios and multitasking madness. Optimised for AMD Ryzen™ 9000
Series processors and AM5 platforms, the RX 9060 XT takes full
advantage of Smart Access Memory™ to maximise CPU-GPU bandwidth.
Meanwhile, AMD’s Adrenalin Edition software puts one-click performance
tuning and real-time AI-powered enhancements at your fingertips.
Experience the next level of 1440p gaming performance with AMD Radeon™
RX 9060 XT graphics cards. Built for longevity, AMD Radeon™ RX 9060 XT
graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD
Smart Access Memory™ technology, AI-enabled technologies, and seamless
pairing with AMD Ryzen™ 9000 Series processors to unlock the full
potential of your AM5 platform."
General
Warranty
Card Specification
| Interface Type: |
PCI Express 5.0 x16
|
| Number of Required Slots: |
2
|
Chipset
| AMD Stream Processors: |
2048
|
| Core Clock: |
2700 MHz
|
| GPU Boost Clock: |
3290 MHz
|
| GPU Chip Manufacturer: |
AMD
|
| GPU Class: |
Radeon RX 9060 XT
|
Memory
| Effective Memory Clock: |
20 Gbps
|
| Memory Interface: |
128-bit
|
| Memory Size: |
16GB
|
| Memory Type: |
GDDR6
|
3D API
| DirectX Version: |
DirectX 12 Ultimate
|
| OpenGL: |
OpenGL 4.6
|
Power
| Power Connector: |
1 x 8-pin
|
| Recommended PSU Capacity: |
550 W
|
Specification
| Max Resolution: |
7680 x 4320
|
Ports
| DisplayPort Ports: |
2x DisplayPort 2.1a
|
| HDCP Ready: |
Yes
|
| HDMI Ports: |
1x HDMI 2.1b
|
Package Contents
| Package Contents: |
ASRock Radeon™ RX 9060 XT Challenger 16GB OC – Black x1
•
</br></li>
<li><br>Quick Installation Guide x1</br></li>
</ul>
|
Physical Specification
| Backplate included: |
Yes
|
| Item Depth (mm): |
132
|
| Item Height (mm): |
41
|
| Item Width (mm): |
249
|
| Weight (kg): |
0.645
|
