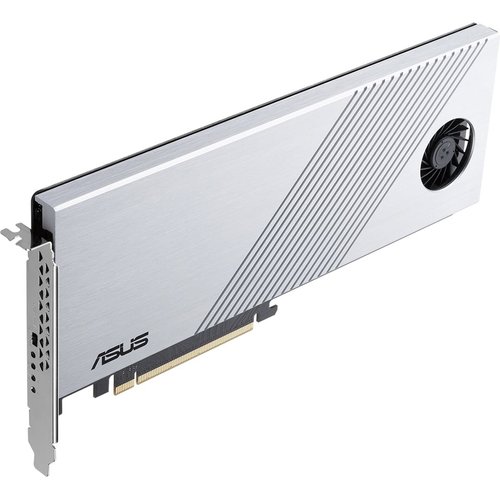

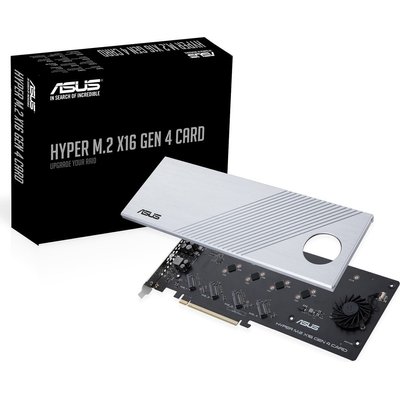

The ASUS Hyper M.2 x16 Gen 4 Card is compatible with the Intel X299,
Z390, Z370 and future platforms' RAID-on-CPU function, and supports
PCIe 4.0 NVMe RAID on the AMD TRX40 and X570 platforms. Unused CPU PCle
lanes can be assigned to storage, allowing you to create a bootable
RAID array with up to four M.2 SSDs.
One card, 8X the bandwidth
The ASUS Hyper M.2 x16 Gen 4 Card uses PCIe 4.0, which doubles the
bandwidth per lane compared to PCIe 3.0. With four M.2 slots, it offers
up to 256 Gbps of bandwidth per card, 8X the bandwidth of a single PCIe
3.0 drive.
Design for unthrottled transfer speed

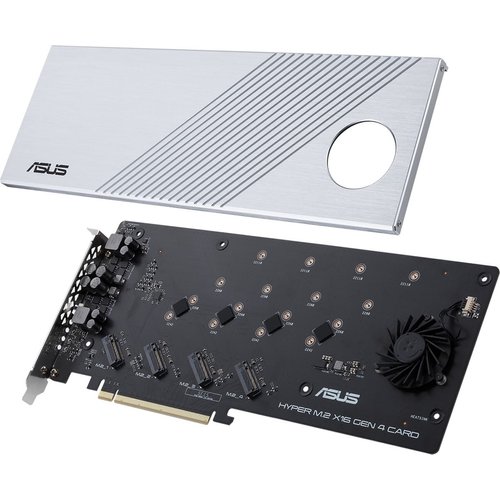

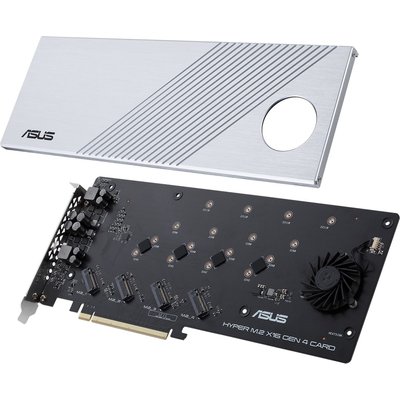

The ASUS Hyper M.2 x16 Gen 4 Card has four M.2 slots — supporting both
PCIe 3.0 and 4.0 — that allow you to expand your system with
high-performance SSD storage. Designed for the latest generation of
NVMe drives, the card features an upgraded power supply that provides
up to 14W of power per drive, as well as a large heatsink and active
fan to ensure that drives stay cool for optimum performance.
- Two-phase power solution with up to 14-watt output supports the
latest NVMe drives
- Large heatsink and active fan reduces M.2 SSD temperatures for
unthrottled transfer speeds and enhanced reliability
- Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2
drives, with up to 256 Gbps bandwidth for smooth data transfers
- Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and
supports Intel® platform RAID-on-CPU functions
- Also support other vendors’ motherboards via PCIe bifurcation in
BIOS setting
General
Warranty
| Warranty: |
36 Months Limited
|
