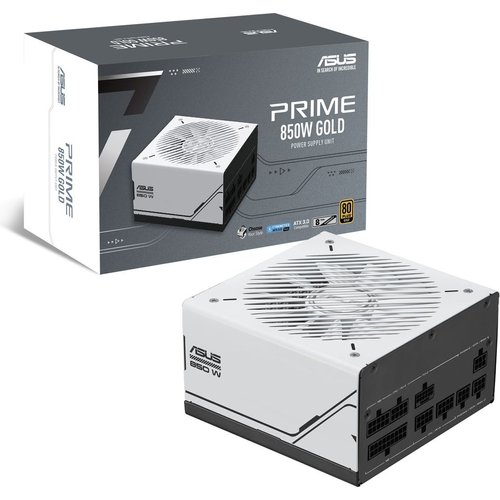

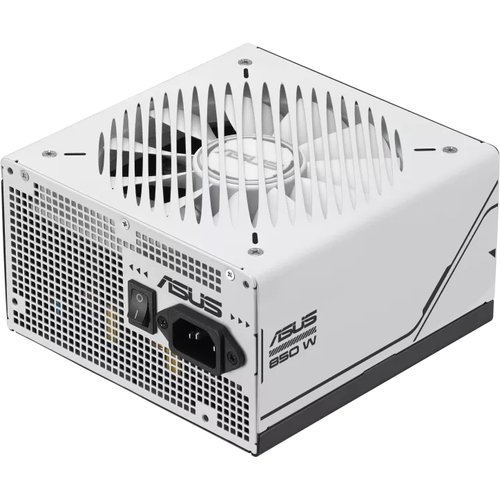

Asus Prime 850W 80+ Gold Fully Modular Power Supply Unit

ASUS Prime 850W Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs
Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
An 80 Plus gold certification is the result of low-ESR capacitors and other premium components.
ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards.

PRIME PERFORMANCE
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

DUAL BALL FAN BEARINGS
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

80 PLUS GOLD CERTIFICATION
The ASUS Prime 850W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

ATX 3.0 COMPATIBLE
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.

General

Brand:	Asus
Series:	Prime
Package Dimensions:	350 x 209 x 145mm (L x W x H)
Categories:	Computers > Components > Power Supplies Promotions
LSN:	XLH-MU0-RND-4
Barcode:	4711387192849
Model Number:	AP-850G
Type:	Power Supply Unit

Warranty

Warranty:

3 Year Limited

Case Type

Form Factor:

ATX

Connectors

Main Connector:	1 x 24pin ATX
PCI Express Connector:	4+4-pin x 2
SATA Power Connector:	5

Specification

80 Plus Grade:	80+ Gold
Input Voltage:	100 - 240Vac
Maximum Power:	850W
Protection:	OPP • OVP • UVP • SCP • OCP • OTP

Package Contents

Package Contents:

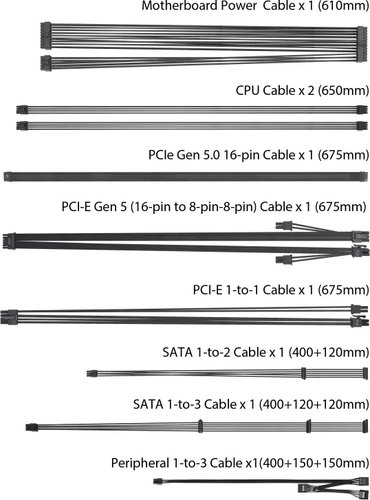

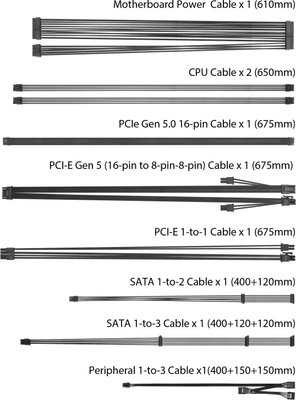

Power Cord x 1 • Motherboard Power Cable x 1 (610mm) • CPU Cable x 2 (650mm) • PCI-E Gen 5 16-pin Cable x 1 (675mm) • PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm) • PCI-E 1-to-1 Cable x 1 (675mm) • SATA 1-to-2 Cable x 1 (400+120mm) • SATA 1-to-3 Cable x 1 (400+120+120mm) • Peripheral 1-to-3 Cable x 1 (400+150+150mm) • User Manual x 1

Physical Specification

Item Depth (mm):	150
Item Height (mm):	86
Item Width (mm):	150
Modular Cable Management:	Fully Modular
Weight (kg):	1.502

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

• Model: AP-850G
• Intel Form Factor: ATX12V
• ATX 3.0: Yes
• Dimensions: 150 x 150 x 86 mm
• Efficiency: 80Plus Gold
• Protection Features: OPP | OVP | UVP | SCP | OCP | OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
• Maximum Load: 20A 20A 70.5A 0.3A 2.5A
• Combined Load: 110W 110W 846W 3.6W 12.5W
• Total Output: 850W

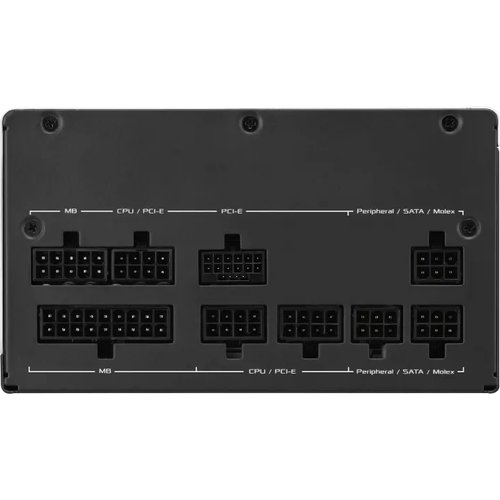

• Cable Connectors: MB 24/20-pin x 1 | CPU 4+4-pin x 2 | PCI-E 16-pin x 1 (both PSU & connector side) | PCI-E 8-pin x 3 | SATA x 5 | PERIPHERAL x 3
• Weight: 1.502 kg (single PSU)
• 0dB Fan Button: No
