Centurion D5 Evo Gate Motor Kit with D5 Anti-Theft Bracket

(sign in to rate)

We don't currently have any sources for this product. If you add this item to your wish list we will let you know when it becomes available.

Description
Details
Features
Customer Reviews

The D5 EVO is one of the best selling motors in the country. It has an intuitive setup, visual diagnostics, advanced timer functionality, battery backup to name few

• voltage: 90 - 240V AC +/-10%, 50Hz
• Motor voltage: 12V DC
• Motor power supply: Battery-driven – 2A charger
• Push force – rated: 17kgf
• Gate speed at push force: < 5kgf 22m/min
• Gate speed at rated push force: 18m/min
• Duty cycle - mains present: 50% | 150 Max Operations per day
• Duty cycle - mains present: 20% | 55 Max Operations per day
• Gate mass - maximum: 500kg
• Onboard receiver type : CENTURION code-hopping,multichannel, 433MHz, capacity - 500 transmitter buttons

General

Brand:	Centurion
Package Dimensions:	530 x 430 x 300mm (L x W x H)
Categories:	Promotions DIY > Security Hardware
LSN:	XB6-REQ-AS5-5
Barcode:
Model Number:	SP162-3

Warranty

Warranty:

6 Months Limited

Package Contents

Package Contents:

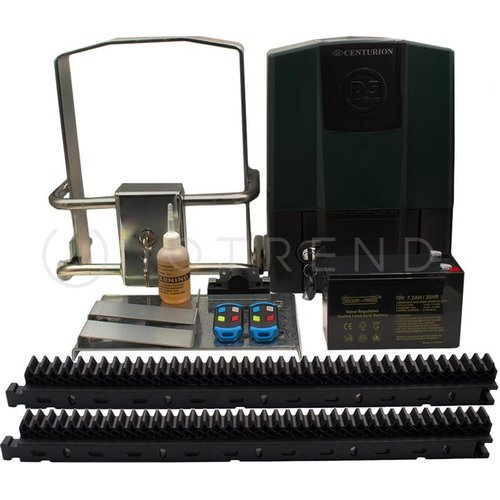

1 x D5 EVo Motor • 1 x PCB Controller - inside Motor • 1 x Base Plate For Centurion D5 Motor • 1 x Origin Marker Kit • 2 x Nova 4x Button Gate Remotes • 1 x 4m (8x500mm) RAZ Rack • 1 x Securi-Prod 12v 7AH Battery • 1 x Centurion D5 Anti-Theft Bracke

Physical Specification

Item Depth (mm):	800
Item Height (mm):	700
Item Width (mm):	700
Weight (kg):	25

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

• The D5-Evo's Low-Voltage requires only a 15-19V AC input
• Easy to Install on preexisting D5 or D3 Baseplate
• Battery backup
• Fast opening and closing, it can move your average four meter gate in less than 12 seconds.
• Programable opening and closing speeds with soft touch closing.
• Can move gates weighing up to 500kg with ease.
• Wide awake all the time!
• Anti Crushing protection built in
• Plug and play easily controllable PC board with LCD screen allows you to easily program and view all available features.
