Professional quality, accelerated productivity, fast and easy to use. The GBC Fusion Plus 7000L A3 Laminator is Ideal for heavy duty use in Large offices. Automatic speed adjustment sensors with a manual over-ride for non-standard documents, six roller technology for professional finish. Laminate using light-weight 2 x 75 up to heavy weight 2 x 250 micron thermal pouches, the result is ideally clear, flat finish. Simply load your Pouch and Laminate!
General
Warranty
Warranty: |
2 Year Warranty
|
Other Features
Compatible Pouches: |
Max: 500 Micron Pouch Thickness
|
Package Contents
Package Contents: |
1 x Laminator Unit
|
Physical Specification
Item Depth (mm): |
235
|
Item Height (mm): |
121
|
Item Width (mm): |
578
|
Weight (kg): |
8.19
|
Is the information for this product incomplete, wrong or inappropriate?
Let us know about it.
Does this product have an incorrect or missing image?
Send us a new image.
Is this product missing categories?
Add more categories.
- Professional quality A3 Laminator
- Fast & Productive laminator
- Ideal for heavy duty use in Large Offices
- Warm up Time: 1 min
- Laminating Width: Up to A3 Max (324mm)
- Max Pouch Thickness: 150 500 mic (2x75mic or 2x125mic or
2x175mic or 2x250mic)
- Laminates an A4 document with a 2x75micron pouch in less
than 13 seconds
- Laminators from ID size to A3
- Auto Speed adjustment sensors with a manual over-ride for
non-standard document
- Adjustable pouch guide keeps documents perfectly aligned
- Intelligent Pouch Reverse
- Green light & audible beep indicate when ready
- Exit tray for a perfectly flat finish
- Auto shut off after 30 minutes of inactivity conserves
energy
- Lamination width: A3 Max (324mm)
- 1 Minute warm up time (75mic)
- 1400mm/min Speed
- 500 micron Pouch thickness
- 2 Year warranty

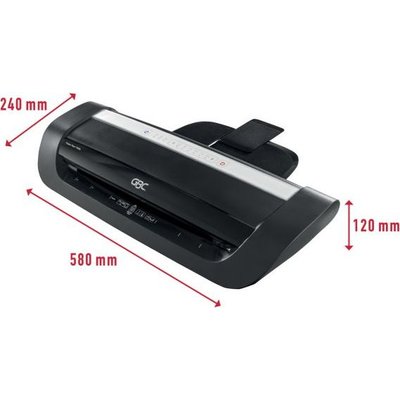

- Dimensions: 121(H) x 578(W) x 235mm(D)
- Please take note of the maximum thickness pouch a laminator
can take. Any pouch thicker than the maximum allowance will jam inside
the laminator and void the warranty.
How
to choose the correct laminator:
No matter which style you choose, the basic three questions
apply when choosing the right model
1. How many users and how often?
- The number of users has a significant impact on choice,
and, as we know, those laminating for business have different
priorities to the home user.
- Using a laminator more frequently than what it was designed
for will burn the motor out quicker.
- Moderate use Entry-level laminators, ideal for homes, home
offices and start-up business
- Regular use Mid range models perfect for average to large
business
- Heavy use Premium models designed to focus on high volume
for specialized business
2. What laminating thickness?
- Pouches (also known as laminating pockets) are the most
recognised accessories.
- Measured in microns – the higher the micron the thicker the
laminate.
- Ranging from 75 250 microns and, as a general rule, the
more the document is handled the thicker the laminate should be.
- Top tip: Pouches are often depicted as '2x', followed by
the micron thickness. E.g. 2x125 micron = 250 micron Pouch.
(The '2x' is simply to indicate each separate side of the pouch, rather
than representing two individual pouches)
3. What size document are you laminating? (A3, A4 etc.)
- The first consideration is content. What size laminate do
you need? All laminators do not cover every format, and while other
aspects are important, content size is crucial.
Laminating
Hints and Tips
1. Always laminate closed end first
- Feeding work in 'open end' first is the number one cause of
laminating jams.
- Always ensure that the closed side enters the machine first
to significantly reduce hold ups.
2. Laminating shapes and sizes
- When laminating irregular shapes:
- Make sure that the sealed edge of the laminate enters the
machine first
- Ensure content is as close as possible to that sealed edge.
- If laminating multiple irregular shapes, place them all as
close together as possible near the sealed edge. A carrier should also
be used for this function.
3. Laminating Maintenance
- Run a cardboard laminator cleaning sheet (without
laminating pouch) through your machine regularly.
- This helps to remove adhesive blockages which can appear
over time and may contribute to jams.
4. Don't laminate an empty pouch
- Never laminate a pouch without content as it may result in
malfunction or jamming.
