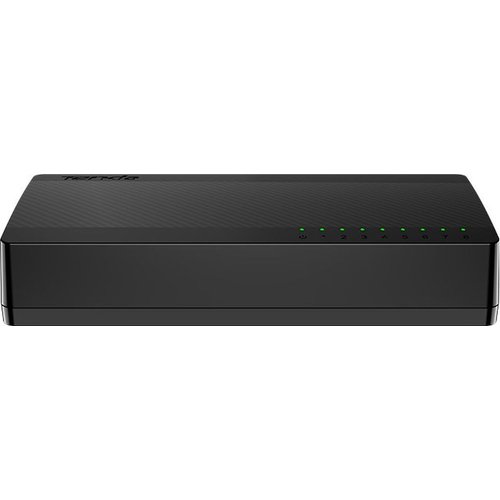

TENDA 8-port Gigabit Ethernet Switch
SG108, designed by Tenda, are Ethernet switches with all gigabit ports.With high performance, fancy design and easy to maintain feature, SG108 are especially fit for scenarios requiring fast transmission, such as schools,families, SMBs and small-scale surveillance. The switches provide several Ethernet ports for downlink extension, and can also connect to uplink network devices. Compared with 100M switches, SG108 have a transmission speed 10 times faster, capable of transmitting large files, thus solving the video lag and video loss problems for HD surveillance. Besides, SG108 support both desktop installation and wall mounting, can be played once plugged, are easy to use without configuration. The switches are ideal choices for you to improve network performance.
8-Port Gigabit Ethernet Switch
Equipped with 8*GE, the transmission rate of up to 2000Mbps in full duplex mode. Adopt the highly integrated circuit design of enterprise-level standards, effectively solve the network jam, the loss of monitoring screen, and other problems in the networking environment.
Smaller Size, More Surprises
124mm*59mm*23mm super mini body, save more space. The packet loss rate of the measured data is zero, ensuring 7*24 hours of stability without dropping the line.
Plug And Play, Convenient Networking
Each port supports MDI/MDIX auto-flip. Plug in the network cable to access the Internet, without unnecessary Settings, simple and convenient.
IGMP Snooping for Multicast Optimization
Ensure a better network experience by optimizing multimedia traffic transmission,This can ensure smooth play of video services while the users are watching IPTV.
Wide Application
It is compatible with network devices such as surveillance cameras, computers, printers, smart TVs, and smart game consoles to better meet the networking requirements of enterprises and household environments.
General
Power
Output Current: |
0.6 A
|
Output Voltage: |
9 V
|
Specification
Data Rates: |
16Gbps
|
MAC Address Table: |
8K
|
Media: |
CAT5/5e UTP or better
|
Standards: |
IEEE802.3
•
IEEE802.3u
•
IEEE802.3x
•
IEEE802.3ab
|
Switch Type: |
Unmanaged
|
Switching Capacity: |
16Gbps
|
Package Contents
Package Contents: |
1 x Installation Guide
•
1 x Tenda SG108
•
1 x Power Adapter (5V0.6A)
|
Operational Conditions
Storage Temperature (T-T): |
-40 - 70 °C
|
Physical Specification
Item Depth (mm): |
59
|
Item Height (mm): |
23
|
Item Width (mm): |
124
|
LEDs: |
1 x Power
•
8 x Link/Act
|
Ports: |
8 x 10/100/1000 Base-T Ethernet ports(Auto MDI/MDIX)
|
Weight (kg): |
0.32
|
Is the information for this product incomplete, wrong or inappropriate?
Let us know about it.
Does this product have an incorrect or missing image?
Send us a new image.
Is this product missing categories?
Add more categories.
- Network standards: IEEE802.3 | IEEE802.3u | IEEE802.3x | IEEE802.3ab
- LED Indicator: 1 x Power | 8 x Link/Act
- Interfaces: 8 x 10/100/1000 Base-T Ethernet ports(Auto MDI/MDIX)
- Transmission media: Recommended: CAT5/5e UTP or better
- Dimension: 124mm x 59mm x 23mm
- Material: Plastic
- Level of protection: ESD: Air discharge: ±8kV / Contact discharge: ±6kV
- Forwarding mode: Store-and-forward
- Switch capacity: 16Gbps
- Packet forwarding rate: 12.00Mpps
- Buffer: 4Mb
- MAC address table: 8K
- Power: Input: 100-240V AC 50/60Hz | Output: 5V 0.6A (External power adapter)
- Power consumption: Max:<3W
- Mounting: Desktop mounting: Support | Wall mounting: Support | Rack mounting: Non-Support
- Environment: Operating temperature: 0°C - 45℃ | Storage temperature: -40°C - 70°C | Operating humidity: (10% - 90%) RH, non-condensing | Storage humidity: (5% - 90%) RH, non-condensing
- Certification: CE, FCC, RoHS
- Protocols: CDMA/CD
- MAC Address Learning: Auto-Learning and Auto-Aging
- Funtions: Plug-and-Play
