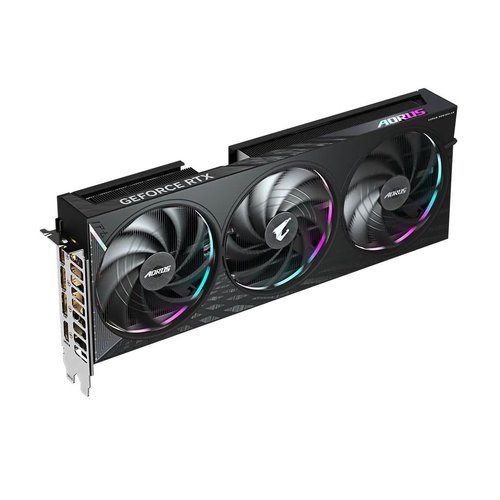

GIGABYTE AORUS GeForce RTX 5060 Ti ELITE 16GB Graphics Card

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation

Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp

True-to-Life Graphics
Full ray tracing with neural rendering

Digital Humans and AI Assistants
NVIDIA ACE

Accelerate Your Creativity
NVIDIA Studio creator tools and technology

Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder

Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers

The Ultimate Gaming Display Technologies
NVIDIA G-SYNC

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

ACTIVE COOLING DESIGN
- HAWK FAN

SERVER-GRADE
THERMAL CONDUCTIVE GEL

LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE

SCREEN COOLING

UNCOMPROMISING CRAFTSMANSHIP & PERFORMANCE
Shuttling through the AORUS universe, the iconic light slices through the visual field, while extreme speed leaves afterimages that culminate in a truly one-of-a-kind symbol.

SPEED WITH AFTERIMAGE EFFECT
The design focuses on extensive afterimage effects to convey an intense sense of extreme speed on the front cover, with the visuals converging into the fans. Paired with a matte surface texture, the overall appearance is imbued with a mysterious yet dynamic aura.

OVERLAY DESIGN
The AORUS logo on the side utilizes an overlay design to create a gradient effect, enriching the visual layers while also presenting a dynamic and vibrant aesthetic.

RGB HALO
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

EXCELLENCE IN ESSENTIAL

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

DUAL BIOS (Performance / Silent)
POWER INDICATOR
SUPERIOR CRAFTSMANSHIP

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

General

Brand:	Gigabyte
Categories:	Computers > Components > Video Cards & Video Devices > PCI-E Video Cards
LSN:	XVP-6SW-AS5-4
Barcode:
Model Number:	GV-N506TAORUS E-16GD
Type:	Graphics Card

Card Specification

Interface Type:

PCI-E 5.0

Chipset

Core Clock:	2572 MHz
GPU Boost Clock:	2722 MHz
GPU Chip Manufacturer:	NVIDIA
GPU Class:	Geforce RTX 5060 Ti

Memory

Effective Memory Clock:	28Gbps
Memory Interface:	128 Bit
Memory Size:	16GB
Memory Type:	GDDR7

3D API

DirectX Version:	DirectX 12 API
OpenGL:	4.6

Power

Power Connector:	1 x 8 pin
Recommended PSU Capacity:	650W

Specification

Max Resolution:

7680 x 4320

Ports

DisplayPort Ports:	3 x DisplayPort 2.1b
HDCP Ready:	Yes
HDMI Ports:	x1 HDMI 2.1b

Physical Specification

Backplate included:	Yes
Item Depth (mm):	398
Item Height (mm):	85
Item Width (mm):	230
Weight (kg):	1.6kg

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

FEATURES

•  Powered by the NVIDIA Blackwell architecture and DLSS 4
•  Powered by GeForce RTX™ 5060 Ti
•  Integrated with 16GB GDDR7 128bit memory interface
•  WINDFORCE cooling system
•  Hawk fan
•  Server-grade Thermal conductive gel
•  RGB Halo
•  Dual BIOS (Performance / Silent)
•  Reinforced structure
•  4 years warranty (Online registration required)
