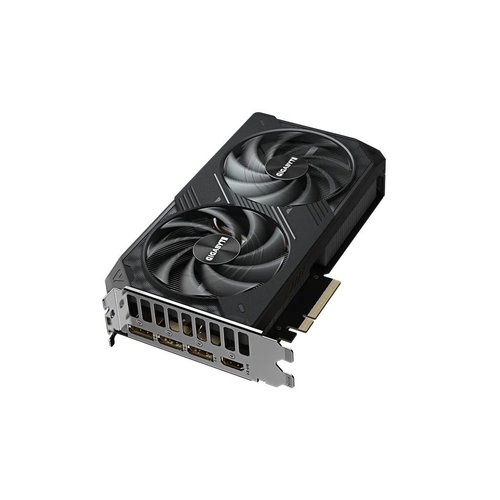

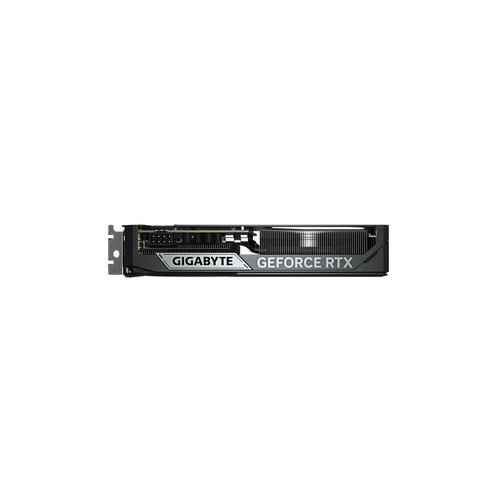

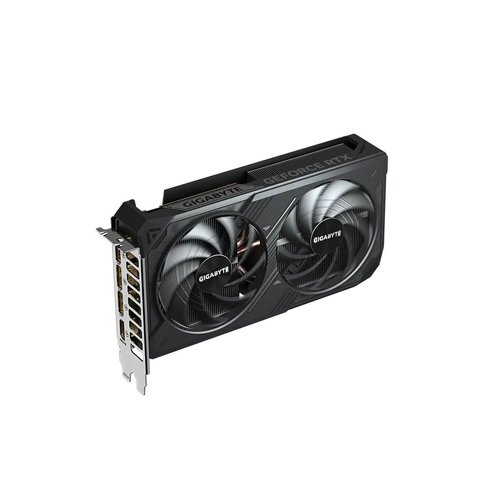

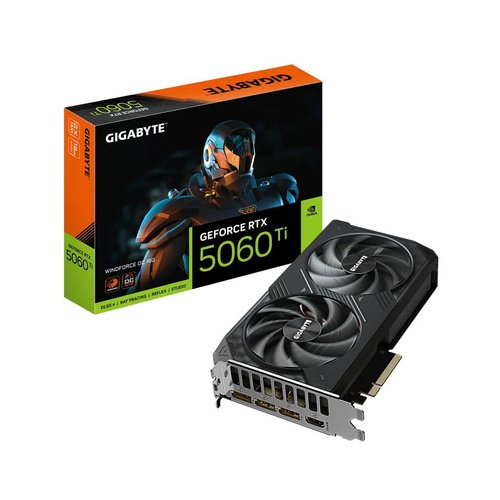

GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 16GB Graphics Card

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation

Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp

True-to-Life Graphics
Full ray tracing with neural rendering

Digital Humans and AI Assistants
NVIDIA ACE

Accelerate Your Creativity
NVIDIA Studio creator tools and technology

Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder

Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers

The Ultimate Gaming Display Technologies
NVIDIA G-SYNC

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

EXCELLENCE IN ESSENTIAL

REINFORCED STRUCTURE

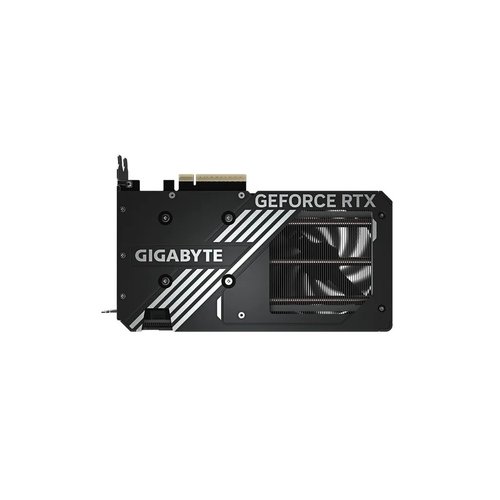

The reinforced metal backplate securely fastened to the I/O bracket, provides exceptional structural integrity.

SUPERIOR CRAFTSMANSHIP

ULTRA DURABLE
ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

General

Brand:	Gigabyte
Categories:	Promotions Computers > Components > Video Cards & Video Devices > PCI-E Video Cards > Nvidia Cards
LSN:	X1Q-6SW-AS5-3
Barcode:
Model Number:	GV-N506TWF2OC-16GD
Type:	Graphics Card

Card Specification

Interface Type:

PCI-E 5.0

Chipset

Core Clock:	2572 MHz
GPU Boost Clock:	2587 MHz
GPU Chip Manufacturer:	NVIDIA
GPU Class:	Geforce RTX 5060 Ti

Memory

Effective Memory Clock:	28Gbps
Memory Interface:	128 Bit
Memory Size:	16GB
Memory Type:	GDDR7

3D API

DirectX Version:	DirectX 12 API
OpenGL:	4.6

Power

Power Connector:	1 x 8 pin
Recommended PSU Capacity:	650W

Specification

Max Resolution:

7680 x 4320

Ports

DisplayPort Ports:	3 x DisplayPort 2.1b
HDCP Ready:	Yes
HDMI Ports:	x1 HDMI 2.1b

Physical Specification

Backplate included:	Yes
Item Depth (mm):	295
Item Height (mm):	50
Item Width (mm):	210
Weight (kg):	0.8kg

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

FEATURES

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX™ 5060 Ti
• Integrated with 16GB GDDR7 128bit memory interface
• WINDFORCE cooling system
• Hawk fan
• Server-grade Thermal conductive gel
• Reinforced structure
