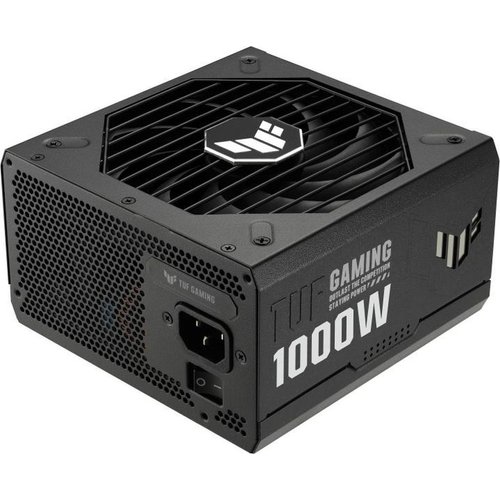

ASUS TUF Gaming 1000W 80Plus Gold Power Supply Unit - Fully Modular

Built For The Long Haul The ASUS TUF Gaming 1000W Gold packs military-grade strength, a flagship fan design, and PCB protection for efficient, durable power delivery. The result is a PSU that will reliably fuel your rig for years to come.​ Durability TUF Components Top marks With military-grade components, including capacitors rated for 105°C operation and up to 170,000 hours’ lifespan, the ASUS TUF Gaming 1000W Gold empowers you to build in confidence.​ Dual Ball Fan Bearings 2x longer lifespan Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design. Protective PCB Coating All wrapped up A protective conformal coating envelops the PCB to protect against short-circuits caused by moisture, dust, and debris. ENGINEERING 80 Plus Gold Certification Heart of gold The TUF Gaming 1000W Gold Aura Edition features efficient, low-ESR Japanese capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.​ ATX 3.0 Compatible Step into the future The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and TUF Gaming 1000W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.​ Axial-tech Fan Design Better, faster, stronger Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For TUF Gaming series PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise. EXPERIENCE 10-year Warranty A decade of power​ We're so confident about the reliability of the TUF Gaming 1000W Gold that we back it with a 10-year worldwide warranty.​ Fully Modular Etched Cables Supple ply The included fully-modular cable set is etched to provide a similar aesthetic to sleeved cables but a touch more flexibility for tight spaces.

General

Brand:	Asus
Release date:	October 2022
Package Dimensions:	310 x 200 x 109mm (L x W x H)
Categories:	Computers > Components > Power Supplies Promotions
LSN:	XHN-LQ3-QND-4
Barcode:	4711081786412
Colour:	Black
Model Number:	90YE00S1-B0NA00
Purpose:	PC

Cooling System

Cooling Type:	Active
Fan Diameter:	13.5
Number of Fans:	1 fan(s)

Connectors

ATX Power Connector (20+4 pin):	Yes
CPU Power Connector (4+4 pin):	Yes
Molex Connectors:	4
Motherboard Connector:	20+4 pin ATX
SATA Power Connector:	5

Power

AC Input Voltage:

100 - 240 V

Specification

80 Plus Grade:	80 PLUS Gold
ATX Version:	3.0
Protection:	Over power • Over voltage • Overcharge • Overheating • Short circuit • Under power • Under voltage

Networking

Cabling Technology:

Modular

Package Contents

Cables:	AC • CPU • PCIe • Peripheral (Molex) • SATA
Package Type:	Box

Physical Specification

Item Depth (mm):	150
Item Height (mm):	86
Item Width (mm):	150
On/Off Switch:	Yes
Weight (kg):	2.48
