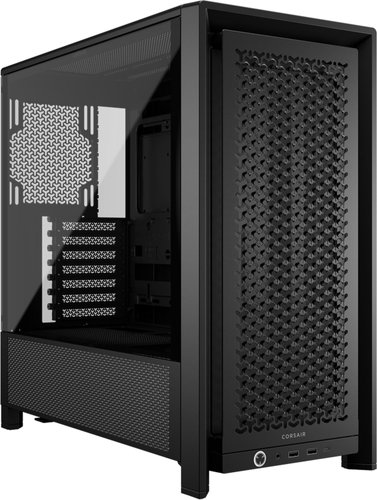

Corsair FRAME 4000D Tempered Glass Black Steel Modular ATX Mid-Tower Desktop Chassis

The CORSAIR FRAME 4000D is a fully-modular and spacious mid-tower PC case featuring the InfiniRail™ Fan Mounting System and compatible with reverse connector motherboards. Its revolutionary FRAME Modular Case System lets you customize your build like never before—upgrade the motherboard tray to billet aluminum, replace the front I/O panel for more USB ports, or even swap the PSU mounting bracket to the rear for even more airflow.

The InfiniRail™ system lets you mount up to 3x 200mm fans in the front, 3x 120mm fans on the side, or even a 360mm radiator in the side. Every CORSAIR FRAME 4000D includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot. Pair a next-gen GPU with quality CORSAIR components for top-shelf performance and no hassles, right out of the box.

General

Brand:	Corsair
Categories:	Computers > Components > Computer Cases
LSN:	XH8-9QY-AS5-1
Barcode:
Colour:	Black

Warranty

Warranty:

2 Year Limited

Case Type

Form Factor:

Mid-Tower

Configuration

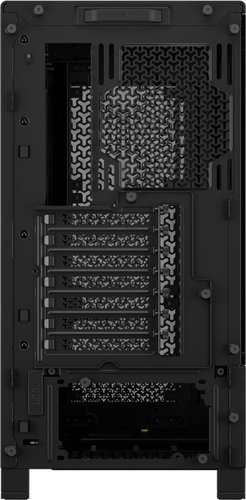

Expansion Slots:	7 Horizontal or 3 Vertical
Front Ports:	USB 3.2 Gen 2 Type-C: x1 • USB 3.2 Gen 1 Type-A: x2
Internal 2.5" Bays:	2
Internal 3.5" Bays:	2
Material:	Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
Max GPU Length:	430 mm
Motherboard Compatibility:	Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm x 277mm)
PSU Position:	Bottom
Power Supply:	ATX
Side Panel:	Tempered Glass

Cooling System

Bottom Fans:	2x 120 mm
Front Fans:	3x 120 mm, 2x 140 mm, 2x 200 mm
Internal Fans:	0
Number of Fans:	Up to 12x 120 mm
Rear Fans:	1x 120 mm, 1x 140 mm
Side Fans:	3x 120 mm, 2x 140 mm
Top Fans:	3x 120 mm, 2x 140 mm

Water Cooling

Front:	360 mm, 280 mm, 240 mm
Rear:	140 mm, 120 mm
Top:	360 mm, 280 mm, 240 mm

Package Contents

Package Contents:

1x Corsair FRAME 4000D Mid-Tower Case (Black, with Tempered Glass Side Panel) • 1x GPU Anti-Sag Stabilization Arm • 1x Cable Shroud (integrated for cable management) • Front I/O and mounting hardware (screws for motherboard, drives, fans, and radiators; thumbscrews for side panel) • User Manual/Quick Start Guide

Physical Specification

Item Depth (mm):	490
Item Height (mm):	486
Item Width (mm):	239
Weight (kg):	10.03

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

GET READY FOR YOUR NEXT BUILD
NEXT-GEN GPUs ARE COMING
Check which of our components will work with the next-generation of GPUs out of the box.

BUILD YOUR WAY
ENDLESS MODULAR POSSIBILITIES
The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.

This case evolves with your needs, offering near limitless options for upgrades and changes.

FAN FOCUSED

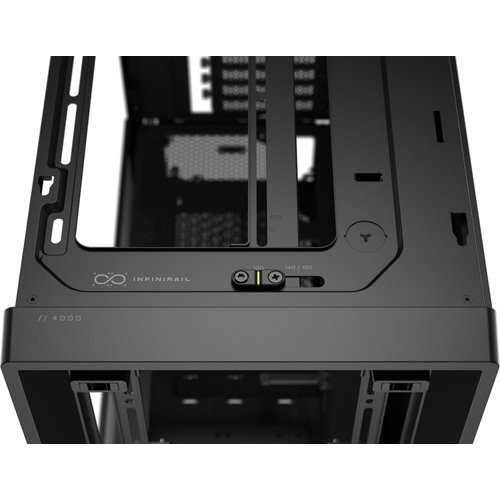

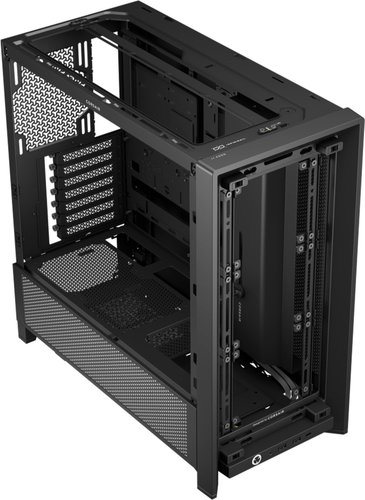

INFINIRAIL FAN MOUNTING SYSTEM
This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.

IMPROVED COOLING
UP TO 12% MORE AIRFLOW

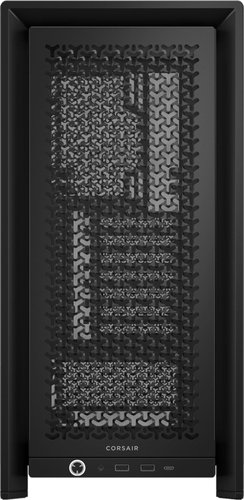

Engineered for maximum airflow and minimal resistance, the new 3D Y-pattern steel front panel ensures a smooth, unobstructed path for cool air, enhancing overall cooling.

BUILD AND CHILL
DUAL 360mm RADIATOR SUPPORT
Boost your cooling with three dedicated mounting locations for 360mm radiators – front, roof, and side. You can mount up to 10x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

FUTURE PROOF
GET IN THE FRAME
Ensure your build has excellent airflow with careful cable routing and support for the latest motherboards and graphics cards.

NO VISIBLE CABLES?
Fully compatible with reverse-connector motherboards from Asus, MSI, and Gigabyte, allowing for unobstructed airflow and a super-clean build.

SAG-FREE GRAPHICS CARDS
Every CORSAIR FRAME 4000D includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

CABLE SHROUD
Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.

WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 12x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators.

The FRAME 4000D has more than enough space to accommodate and cool your most ambitious build.

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
