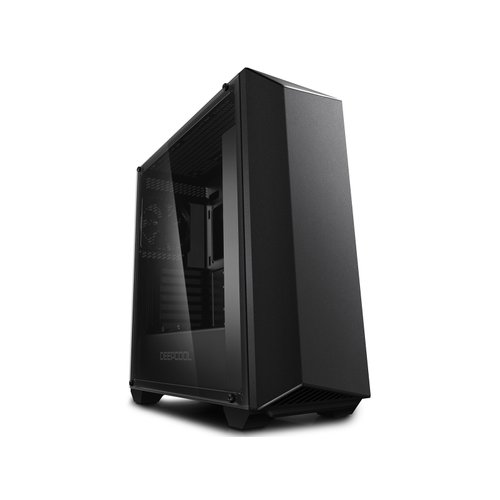

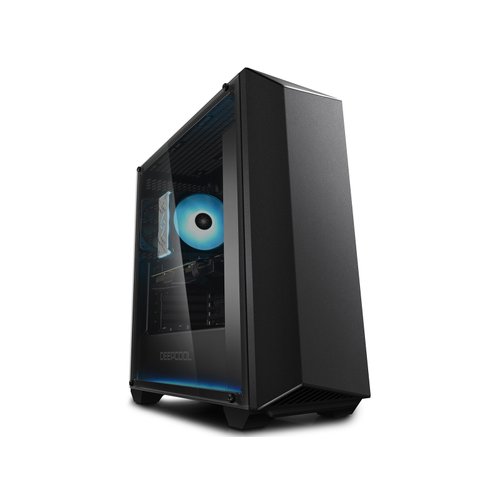

DeepCool Earlkase RGB Windowed Mid-Tower ATX Chassis (Black)

Easily Adjustable LED Lighting
EARLKASE RGB includes an expandable RGB lighting system with one LED strip and 2 extra RGB headers.

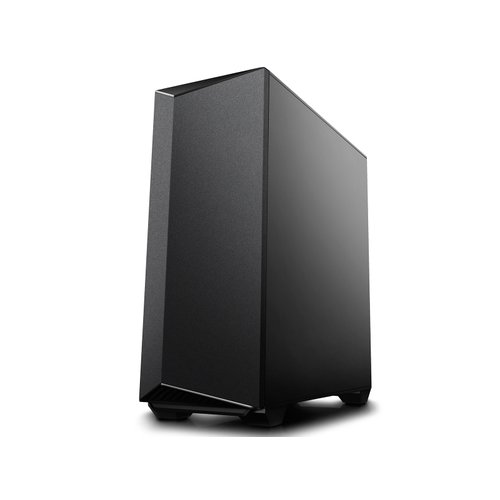

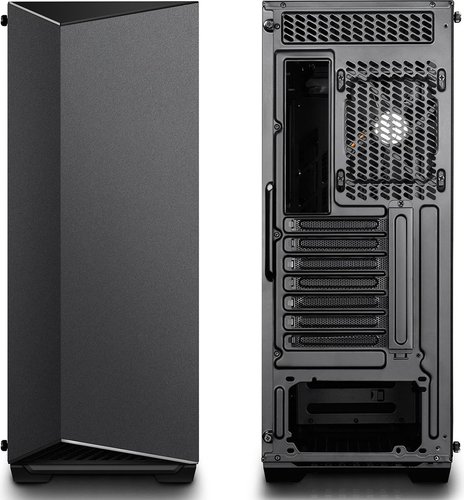

Distinctive Front Panel
1.0 mm-thick all-metal front panel has a powdered coating finish, offering a unique scratch-resistant and anti-staining glamor and form.

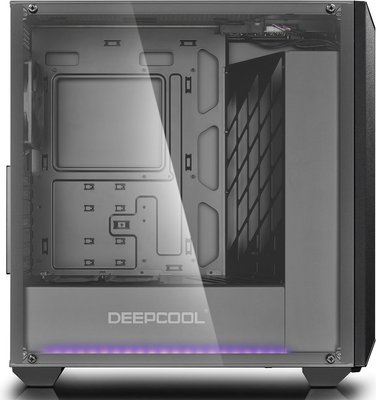

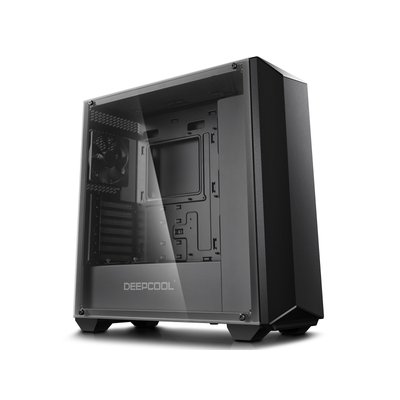

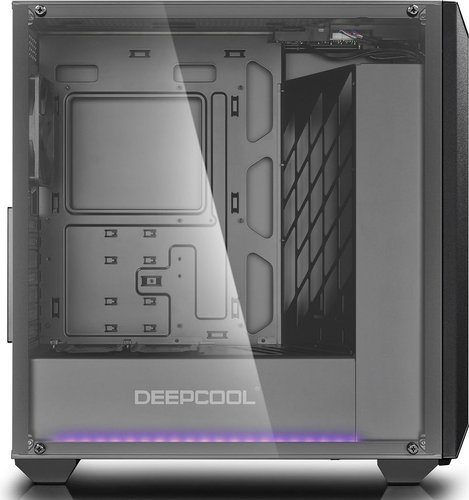

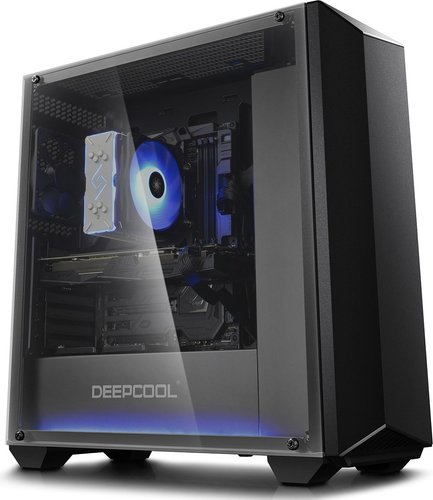

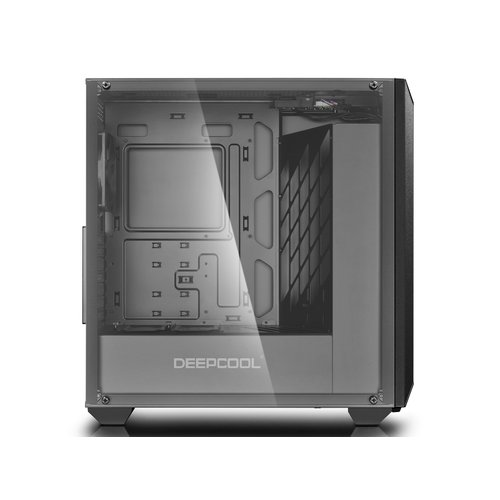

Tempered Glass Side Panel
See-through tempered glass panel provides crystal clear visibility of the internal trappings within your prized gaming rig.

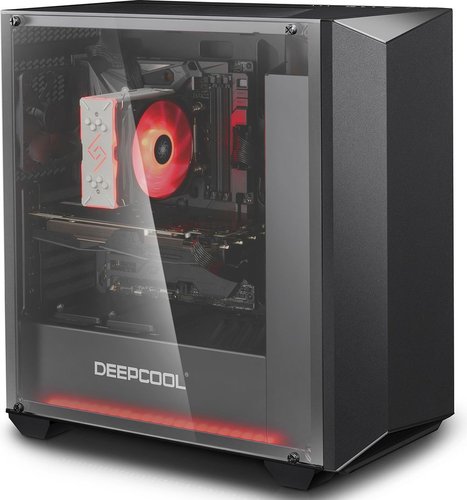

Expandable RGB Lighting System
EARLKASE RGB includes an expandable RGB lighting system with one LED strip and 2 extra RGB headers. These can be connected to other Deepcool RGB products such as GAMMAXX GT and Captain EX RGB Series. Control buttons are furnished at the front panel for easily-accessible RGB lighting customization.

Superb Liquid-Cooling Compatibility

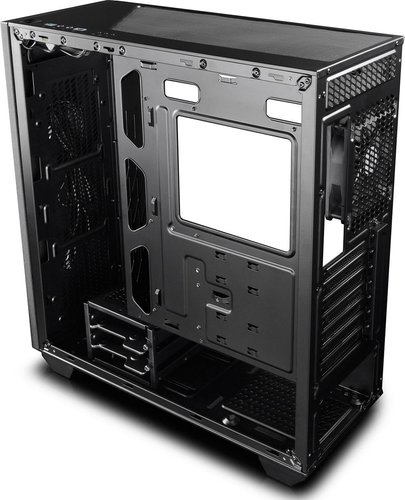

Compatible with AIO liquid cooling systems. Top radiator: max 280 mm. Front radiator: max 360 mm or 280 mm. DIY liquid cooling system support: Pre-fabricated internal mounting holes to easily install custom liquid cooling system components.

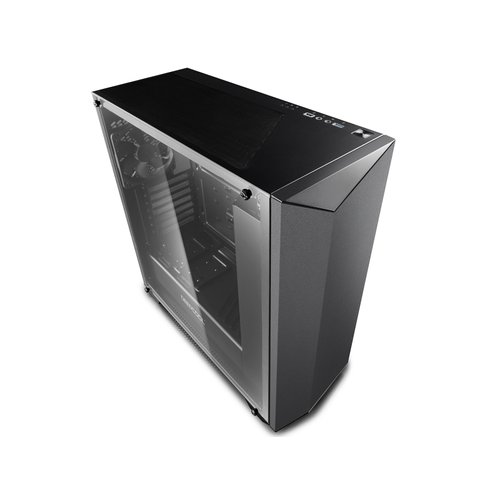

- Top-mounted magnetic dust filter allows easy removal for thorough cleaning
- Luminous I/O ports facilitate operations in darkness

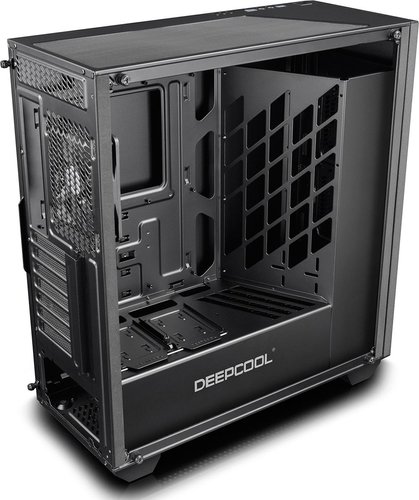

- Movable HDD cage provides more space for a larger PSU
- Specialized openings in PSU cover brings in more cooling air into the case

- 1.0 mm-thick all-metal front panel features a powdered coating finish, offering unique scratch-resistant and anti-staining properties
- Expandable RGB lighting system with a pre-installed LED strip easily customized using control buttons furnished at the front panel
- NOTE: The expandable RGB lighting system is designed to accommodate only Deepcool RGB products
- Full-size tempered glass side panel provides total visibility of system interiors
- Compatible with AIO liquid cooling systems. Top radiator: max 280 mm. Front radiator: max 360 mm or 280 mm
- DIY liquid cooling system support: Pre-fabricated internal mounting holes for super-easy installation of custom liquid cooling system components
- Top-mounted magnetic dust filter for easy removal and thorough cleaning
- Luminous I/O ports facilitating operations in darkness
- Movable HDD cage provides additional space for a larger PSU
- 2x 120 mm black fans pre-installed at the front and rear
- 1x USB 3.0 and 1x USB 2.0 ports

General

Brand:	DeepCool
Series:	Earlkase
Release date:	February 2018
Categories:	Computers > Components > Computer Cases > Mid-Tower Cases Promotions
LSN:	XA9-DQ5-P5L-6
Barcode:	6933412713388
Colour:	Black
Model Number:	DP-ATX-ERLKBK-GLSRGB
Suitable For:	Gaming
Type:	PC

Case Type

Form Factor:

Tower

Configuration

Expansion Slots:	7
Material:	ABS synthetics • SPCC
Max GPU Length:	30
Maximum CPU Cooler Height:	16.5
Motherboard Compatibility:	ATX • Micro-ATX • Mini-ITX
Number of 2.5" Bays:	4
Number of 3.5" Bays:	2
Number of Internal 3.5" Bays:	2
PSU Position:	Bottom
Side Panel:	Yes
Supported Hard Drive Sizes:	2.5 • 3.5"

Cooling System

Front Fan Diameter Supported:	120 • 140
Front Fans:	1x 120 mm
Front Fans - Max:	3
Rear Fan Diameter Supported:	120
Rear Fans:	1x 120 mm
Top Fan Diameter Supported:	120 • 140
Top Fans - Max:	2

Other Features

Audio Input:	Yes
Audio Output:	Yes
Illumination:	Yes
Illumination Colour:	Multi
Illumination Location:	Internal

Ports

USB 2.0 Ports:	1
USB 3.0 (3.1 Gen 1) Type-A Ports:	1

Physical Specification

Item Depth (mm):	5000
Item Height (mm):	510.5
Item Width (mm):	203.5
Material Thickness:	0.7
Reset Button:	Yes
Weight (kg):	7.98
