DNAKE 1-Button SIP Video Door (Silver)

In today’s age, personal and business security is a major area of concern, and we are continuously looking at how to improve our safety. Thus, it has become increasingly important for us to be in a position to see who is at the entrance to business parks, office buildings, residential estates, etc. The DNAKE range provides an IP based Video Intercom Solution for both commercial and residential properties.

The video intercom solution consists of two key parts, namely door stations (outdoor units) and indoor monitors, which combine to provide a high-resolution video feed of visitors at your entrance. The door station allows the visitor/guest to dial the unit/apartment/office, with the built-in camera providing the video feed. This will cause the indoor monitor to “ring” and display the video feed from the door station camera. Now you can talk to the visitor and remotely unlock the door (if the solution has been connected to a magnetic door lock or similar).

The DNAKE video intercom solution is based on standard SIP, ensuring that it can interface with IP Phones (such as Yealink IP Phones) and IP PBX (such as 3CX) for a complete IP solution.

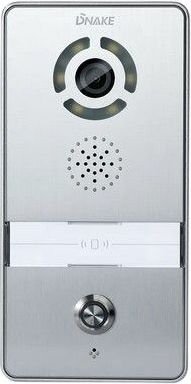

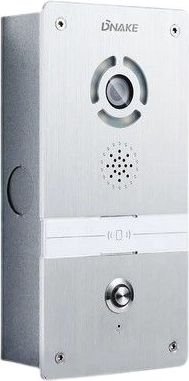

The DNAKE 280D-C12 video door phone (nicknamed the Villa Panel) is the perfect solution for individual offices or homes – the single button design was created with this in mind. Although compact, the 280D-C12 packs a powerful single 2MP camera for excellent video quality. Access can also be gained using a pin number or RFID card.

General

Brand:	DNAKE
Series:	SIP Video Door
Categories:	Promotions DIY > Security Hardware > Security Cameras > Network Cameras
LSN:	XM5-MMF-J9L-6
Barcode:	6974788620054
Colour:	Silver
Model Number:	280SD-C12

Warranty

Warranty:

2 Year Limited Warranty

Package Contents

Package Contents:

Dnake 280SD-C12 • Bracket • Screwing Kit • Quick Installation Guide • Power adaptor not included

Physical Specification

Item Depth (mm):	31
Item Height (mm):	170
Item Width (mm):	84.5

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

• 2M pixel camera (1280 x 720p)
• LED night vision
• PoE support
• IP65 rated
• Supports SIP 2.0 standard
• Supports magnetic door lock
• 1 x 10/100Mbps Ethernet port
• Surface mounted

Benefits:

• Premium audio and video quality
• Vandal-resistant with aluminium panel
• 1 Button with name plate
• 2MP HD camera with automatic lighting
• Supports multiple access control methods, such as access card or remote unlock
• Quick to install and easy integration with IP telephone systems using SIP protocol support
• Compatible with 3CX

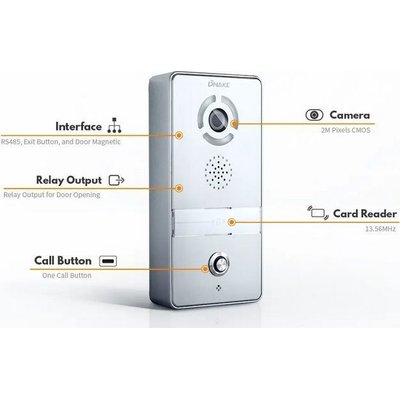

Specifications:

• System: Linux
• RAM: 64 MB
• ROM: 128 MB
• Front Panel: Aluminum
• Power Supply: PoE (802.3af) or DC 12V/2A
• Standby Power: 1.5 W
• Rated Power: 3 W
• Camera: 2MP, CMOS
• Ethernet Ports: 1 x RJ45, 10/100 Mbps adaptive
• Door Entry: IC card (13.56MHz), NFC
• RS485 Port: 1
• Relay Out: 1
• Exit Button: 1
• Door Magnetic: 1
• IP / IK Rating: IP65 / IK07
• Installation: Surface mounting
• Dimension: 170 x 84.5 x 31 mm
• Working Temperature: -40°C to +55°C
• Storage Temperature: -40°C to +70°C
• Working Humidity: 10% to 90% (non-condensing

Compatible Products:

• 280M-S8
• 902M-S8
• 904M-S3
• 905D-Y4
• 902D-B9
