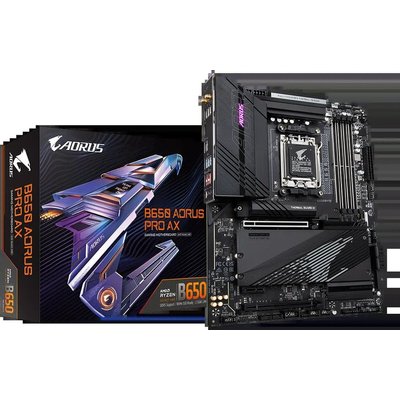

Gigabyte B650 Aorus Pro MB-GB650AP+W AMD Socket AM5 ATX Motherboard

Gigabyte B650 Aorus Pro ax + Wifi : AMD AM5 mb - with 16+2+1 phase digital VRM , aluminum i/o cover with 8mm heatpipe , Addressable LED Strip Support , on-board multi-key buttons , 2x copper PCBs design , with extra noise detection hardware monitoring , MoSFET heatsinks SmartFan6 with 9x temperature sensors + 8x hybrid fan headers , solid pin power connectors ( ATX 24+8+4pin ) , PCIe armor with stainless steel shielding+double locking bracket , with thunderbolt card connector

- AMD B650 chipset , 4x dual channel DDR5-6600(O.C)/5200 upto 128Gb , 4x SATA6G + 3x M.2/NGFF ( 1x Gen5x4 + 2x Gen4x4 ) with thermal guard with raid 0/1//0+1/5/10 , on-board display with HDMi output ( depends on CPU ) + Realtek ALC1220-VB 7.1 audio ( optical s/pdif out ) + intel i255 2.5Gb lan , AMD Wi-Fi 6E RZ616 2.4/5/6G tri band WiFi + bluetooth ; 1x PCi-E3.0 1x + 1x pci-e 4.0 (x16@4x) + 1x pci-e 4.0 (x16@16x) for Quad-GPU CrossfireX ( no SLi ), with 1x USB3 type-C ( Gen2 10GBPs ) + 3x USB3 type-A ( Gen2 10GBPs ) + 4x USB3 type-A ( Gen1 5GBPs ) + 4x USB2.0 , support optional serial port add-on cable , bundled norton internet security - atx

General

Brand:	Gigabyte
Series:	B650 Aorus Pro
Categories:	Computers > Components > Motherboards > AMD > AM3 Computers > Components > Motherboards > AMD > AM4 Promotions > Black Friday 2024 Cyber Monday > Computers > Components > Motherboards
LSN:	X0A-RKU-AS5-1
Barcode:
Model Number:	MB-GB650AP+W
Type:	Motherboard

Warranty

Warranty:

3 Year Limited

Supported CPU

CPU Socket Type:

AM5

Chipset

North Bridge:

AMD B650

Memory

Channels Supported:	Dual Channel
Maximum Memory Supported:	128GB
Memory Standard:	DDR5
Number of Memory Slots:	4

Storage

SATA 6Gb/s:	4 x SATA 6G
SATA RAID:	Raid 0/1//0+1/5/10

Onboard

Audio Channels:	7.1 Channel
Audio Chipset:	Realtek ALC1220-VB 7.1 audio ( optical s/pdif out )
Internal I/O Connections:	Aluminum i/o cover with 8mm heatpipe • Addressable LED Strip Support • on-board multi-key buttons • 2x copper PCBs design • with extra noise detection hardware monitoring • MoSFET heatsinks SmartFan6 with 9x temperature sensors + 8x hybrid fan headers • solid pin power connectors ( ATX 24+8+4pin ) • PCIe armor with stainless steel shielding+double locking bracket with thunderbolt card connector
USB Ports:	1 x USB3 type-C ( Gen2 10GBPs ) • 3 x USB3 type-A ( Gen2 10GBPs ) • 4 x USB3 type-A ( Gen1 5GBPs ) • 4 x USB2.0

Expansion Slots

M2 Slots:	1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
PCI Express 3.0:	1 x PCi-E 3.0 x1 • 1 x PCI-E 4.0 (x16@4x) • 1 x PCI-E 4.0 (x16@16x) for Quad-GPU CrossfireX ( no SLi )

Rear Panel Ports

Additional Rear Ports:	1 x Q-Flash Plus button • 2 x SMA antenna connectors (2T2R) • 4 x USB 2.0/1.1 ports • 1 x HDMI port • 3 x USB 3.2 Gen 2 Type-A ports (red) • 1 x USB Type-C® port, with USB 3.2 Gen 1 support • 4 x USB 3.2 Gen 1 ports • 1 x RJ-45 port • 2 x audio jacks • 1 x optical S/PDIF Out connector
Video Ports:	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Networking

Bluetooth:	Bluetooth V5.3
Lan Chipset:	Intel i255 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wi-Fi:	AMD Wi-Fi 6E RZ616 2.4/5/6G tri band

Physical Specification

Form Factor:	ATX
Item Height (mm):	305
Item Width (mm):	244
