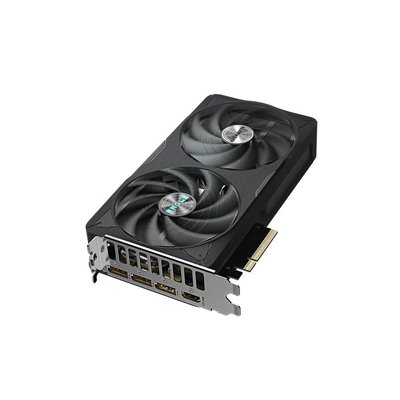

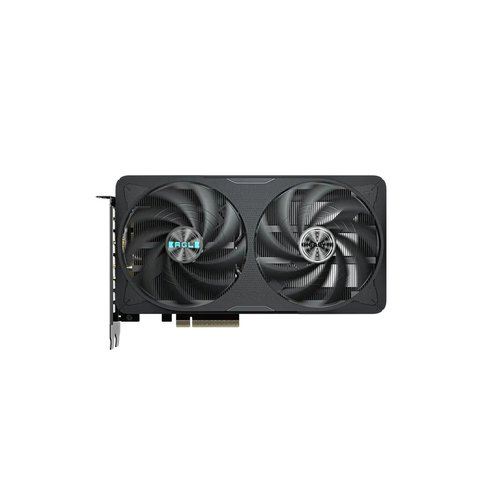

GIGABYTE GeForce RTX 5060 Ti EAGLE OC 16GB Graphics Card

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation

Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp

True-to-Life Graphics
Full ray tracing with neural rendering

Digital Humans and AI Assistants
NVIDIA ACE

Accelerate Your Creativity
NVIDIA Studio creator tools and technology

Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder

Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers

The Ultimate Gaming Display Technologies
NVIDIA G-SYNC

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

ACTIVE COOLING DESIGN
- HAWK FAN

SERVER-GRADE THERMAL
CONDUCTIVE GEL

COPPER PLATE & COMPOSITE COPPER HEAT PIPE

SCREEN COOLING

ASTONISHING EXTERIOR DESIGN
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.

SIGNATURE IDENTITY
The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EALGE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.

EXCELLENCE IN ESSENTIAL

REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

SUPERIOR CRAFTSMANSHIP

ULTRA DURABLE
ULTRA COOLING - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.


FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

General

Brand:	Gigabyte
Categories:	Computers > Components > Video Cards & Video Devices > PCI-E Video Cards
LSN:	XWP-6SW-AS5-2
Barcode:
Model Number:	GV-N506TEAGLE OC-16GD
Type:	Graphics Card

Card Specification

Interface Type:

PCI-E 5.0

Chipset

Core Clock:	2572 MHz
GPU Boost Clock:	2617 MHz
GPU Chip Manufacturer:	NVIDIA
GPU Class:	Geforce RTX 5060 Ti

Memory

Effective Memory Clock:	28Gbps
Memory Interface:	128 Bit
Memory Size:	16GB
Memory Type:	GDDR7

3D API

DirectX Version:	DirectX 12 API
OpenGL:	4.6

Power

Power Connector:	1 x 8 pin
Recommended PSU Capacity:	650W

Specification

Max Resolution:

7680 x 4320

Ports

DisplayPort Ports:	3 x DisplayPort 2.1b
HDCP Ready:	Yes
HDMI Ports:	x1 HDMI 2.1b

Physical Specification

Backplate included:	Yes
Item Depth (mm):	330
Item Height (mm):	57
Item Width (mm):	235
Weight (kg):	0.9kg

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

FEATURES

•  Powered by the NVIDIA Blackwell architecture and DLSS 4
•  Powered by GeForce RTX™ 5060 Ti
•  Integrated with 16GB GDDR7 128bit memory interface
•  WINDFORCE cooling system
•  Hawk fan
•  Server-grade Thermal conductive gel
•  Reinforced structure
