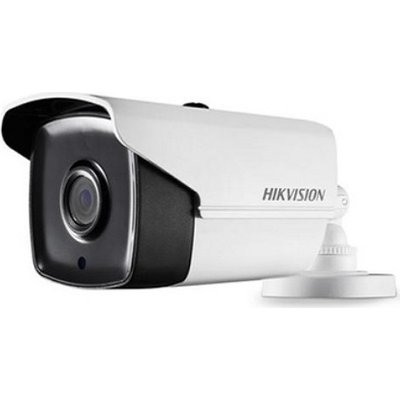

Hikvision 1MP 3.6MM Lens 720P Analog Bullet Camera With 40M IR Distance

1 MP Fixed Bullet Camera
HD 720p bullet camera
EXIR 2.0: advanced infrared technology with 40 m IR distance
Water and dust resistant (IP66)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)



Camera
Image Sensor
1 MP CMOS
Max. Resolution
1296(H) `d7732(V)
Min. Illumination
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day & Night
IR Cut Filter
Angle Adjustment
Pan: 0 to 360`b0, Tilt: 0 to 180`b0, Rotation: 0 to 360`b0
Signal System
PAL/NTSC
Lens
Lens Type
2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm, and 16 mm fixed focal lens
Focal Length & FOV
70.9`b0 (3.6 mm), 92`b0 (2.8 mm), 56.7`b0 (6 mm), 38.6`b0 (8 mm), 27.5`b0 (12 mm), 17.7`b0 (16 mm)
Lens Mount
M12
Illuminator
Supplement Light Type
IR
Supplement Light Range
Up to 40 m
Frame Rate
720p @ 25 fps/720p @ 30 fps
SNR
>62dB
Noise Reduction
2D DNR
Interface
Video Output
1 HD analog output
General
Power
12 V DC `b1 15%, max. 4 W
Dimension
86.7 mm `d7 81.6 mm `d7 226 mm (3.4" `d7 3.2" `d7 8.9")
Approx. 700 g (1.54 lb.)
Operating Condition
-40 `b0C to 60 `b0C (-40 `b0F to 140 `b0F), humidity 90% or less (non-condensing)
Approval
Protection
IP66

General

Brand:	HikVision
Categories:	Promotions DIY > Security Hardware > Security Cameras > Analog CCTV Cameras
LSN:	X71-V6B-M7L-2
Barcode:	6954273638795

Warranty

Warranty:

6 Months Limited

Physical Specification

Item Depth (mm):	235
Item Height (mm):	115
Item Width (mm):	120
Weight (kg):	0.565
