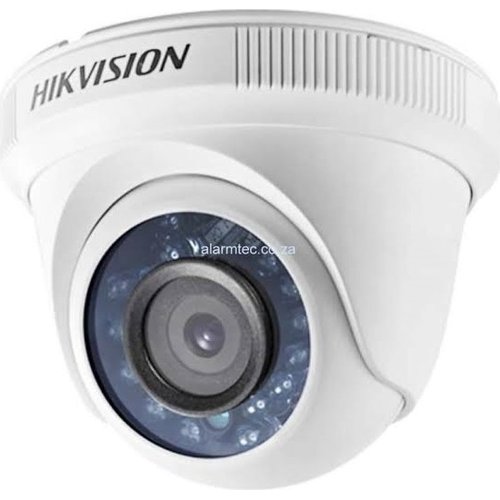

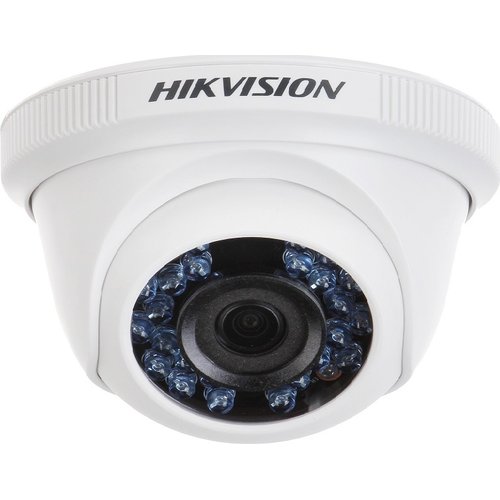

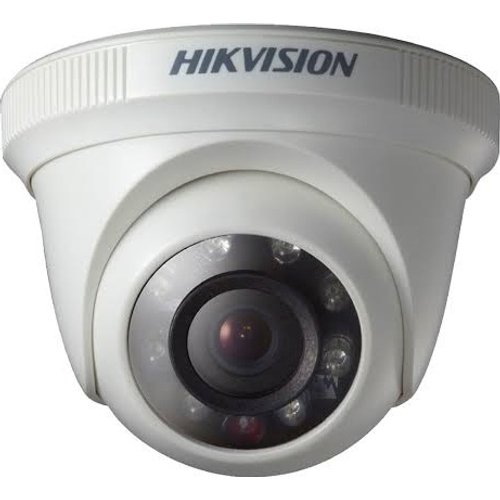

Hikvision 2MP 3.6MM Lens 1080P Analog Dome Camera

WDR (Wide Dynamic Range): DWDR
Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1920(H)*1080(V)
Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens:3.6 mm fixed lens
Lens Mount:M12
Day& Night: IR cut filter
TVI: 1080p@30fps, 1080p@25fps, AHD: 1080p@30fps, 1080p@25fps. CVI: 1080p@30fps, 1080p@25fps, CVBS: PAL/NTSC
Image Mode: STD/HIGH-SAT
Noise Reduction: 2D DNR
AGC: Yes
Language: English
Function: Brightness, Sharpness, Smart IR
White Balance: Auto/Manual

Main Body: Metal
Enclosure: Plastic
Operating Conditions: -40 `b0C - 60 `b0C (-40 `b0F - 140 `b0F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC`b125%
Power Consumption: Max. 3 W
Weather Proof: IP67
IR Range: Up to 25m

General

Brand:	HikVision
Release date:	April 2017
Categories:	Promotions DIY > Security Hardware > Security Cameras > Analog CCTV Cameras
LSN:	XS2-V6B-M7L-5
Barcode:	6954273639303
Colour:	White
Model Number:	DS-2CE56D0T-IRF(3.6MM)
Type:	CCTV security camera

Lens

Fixed Focal Length:

3.6

Warranty

Warranty:

6 Months Limited

Image Sensor

Resolution:	1920 x 1080
Sensor Type:	CMOS

Camera

Pan Range:	0 - 360 °
Shutter Speed:	1/25(1/30) - 1/50000 s s
Tilt Range:	0 - 75 °

Night Vision

LED Type:	IR
Night Vision:	Yes
Night Vision Distance:	20 m

Audio

Signal-to-Noise Ratio (SNR):

62 dB

Connectivity

Connectivity Technology:

Wired

Power

Power Source:

DC

Physical Specification

Diameter:	8.99
Form Factor:	Dome
Item Depth (mm):	95
Item Height (mm):	80
Item Width (mm):	80
Mounting Type:	Ceiling
Placement Supported:	Indoor & outdoor
Weight (kg):	0.225
