Mercusys MER MW325R N300 Wi-Fi Router (White)

N300 Wi-Fi Router
SPEED: 300 Mbps at 2.4 GHz
SPEC: 4 x Fixed External Antennas | 3 x 10/100 Mbps LAN Ports | 1 x 10/100 Mbps WAN Port
FEATURE: MERCUSYS APP | Reset Button | IPTV | IPv6 | Parental Controls | Guest Network | Easy Installation | ISP Preset (Agile Config)

Maximum coverage – four 5dBi antennas provide up to 500m2 of wireless coverage
Enhanced signal – high gain antennas dramatically increase wireless signal strength, size and stability
300Mbps wireless speed - ideal for HD streaming, online gaming, and large file downloads
Easy installation - intuitive webpage guides you through the setup process in minutes
*Range specifications are based on performance test results. Real performance varies in accordance with applications and environmental conditions.

General

Brand:	Mercusys
Series:	MER MW325R
Package Dimensions:	305 x 241 x 50mm (L x W x T)
Categories:	Computers > Accessories Promotions Computers > Networking > Modems & Routers > Network Routers
LSN:	XAG-NQ8-08L-4
Barcode:	6957939000424
Colour:	White
Lockdown Essentials:	Yes
Model Number:	NET-MER-MW325R
Type:	Wi-Fi Router

Warranty

Warranty:

1 Year Limited

Security

Security:

WPA-PSK / WPA2-PSK

Other Features

Firewall Security :

IP and MAC address binding

Specification

Data Rates:	300 Mbps at 2.4 GHz
Network Protocols:	Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Protocols / Topology:	IPv4
Standards:	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Management Features

Device Management:

Access control • Local management • Remote management

Package Contents

Package Contents:

1 x 300Mbps Enhance Wireless N Router MW325R • 1 x AC adapter • 1 x Ethernet cable • 1 x Quick installation guide

Physical Specification

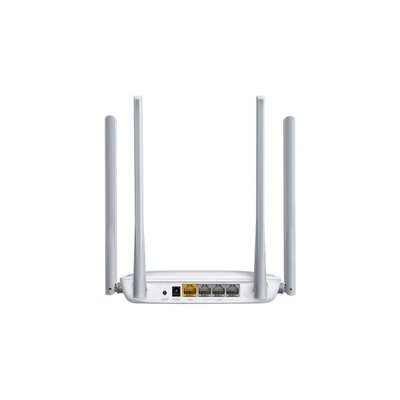

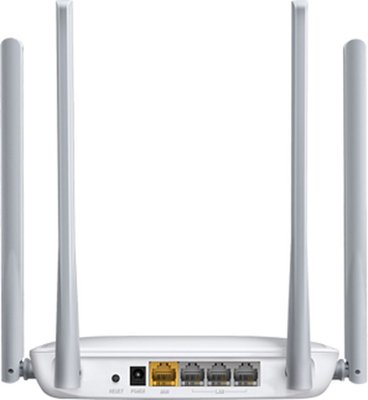

Interface:	4 x Fixed External Antennas • 3 x 10/100 Mbps LAN Ports • 1 x 10/100 Mbps WAN Port
Item Depth (mm):	118
Item Height (mm):	33
Item Width (mm):	167
Ports:	3 x 10/100Mbps LAN ports • 1 x 10/100Mbps WAN port
Weight (kg):	0.56

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Frequency: 2.4 - 2.5GHz
• Signal Rate: 11n: Up to 300Mbps (Dynamic) | 11g: Up to 54Mbps (Dynamic) | 11b: Up to 11Mbps (Dynamic)
• Reception Sensitivity: 270M: -70dBm@10% PER | 130M: -72dBm@10% PER | 54M: -74dBm@10% PER | 11M: -87dBm@10% PER | 6M: -92dBm@10% PER | 1M: -94dBm@10% PER
• Transmission Power: <20dBm
• Wireless Security: WPA-PSK / WPA2-PSK
• Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge
• WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
• Management: Access control | Local management | Remote management
• DHCP: Server, DHCP Client List
• Port Forwarding: Virtual server, UPnP, DMZ
• Dynamic DNS: Oray
• Firewall Security: IP and MAC address binding
• Protocols: IPv4
• Guest Network: 2.4GHz guest network
• Dimensions (W X D X H): 167 x 118 x 33 mm
• Interfaces: 3 x 10/100Mbps LAN ports | 1 x 10/100Mbps WAN port
• Button: Reset button
• External Power Supply: 5VDC/0.6A
• Antenna Type: 4 x 5dBi fixed omni directional antennas
