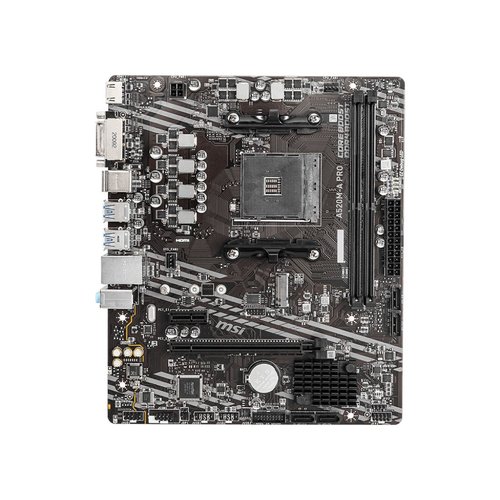

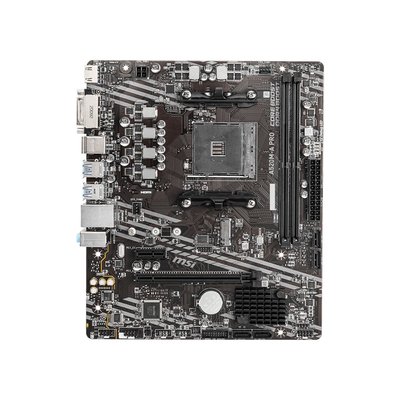

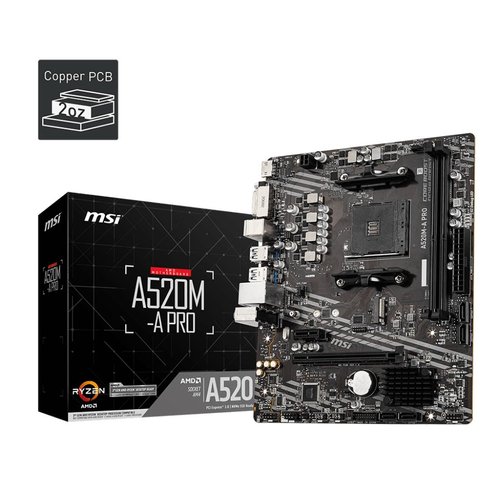

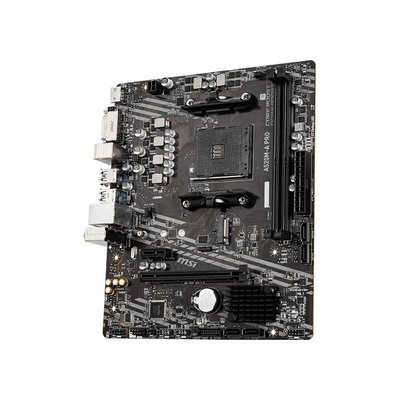

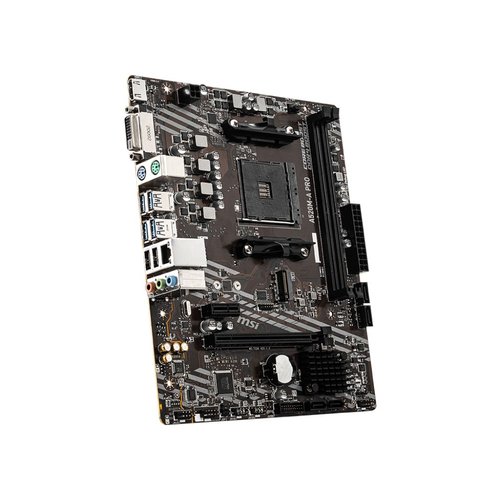

MSI A520M PRO Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. M.2 SHIELD FROZR World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. FULLY CONTROLLABLE IN BIOS AND SOFTWARE MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. EZ DEBUG LED Run into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get up and running again. ULTIMATE MOTHERBOARD PROTECTION Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge surges from damaging the motherboard. FAST AND FUTURE-READY STORAGE MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. USB 3.2 GEN 1 Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices. MYSTIC LIGHT SYNC EXTEND YOUR RGB EXPERIENCE WITH EASE Add your color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. JRAINBOW Connects 3-pin 5V Addressable LED strip JRGB Connects 4-pin 12V RGB LED strip PCB WITH 2OZ THICKENED COPPER An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. A HUGE STEP OF DDR PERFORMANCE MSI OC LAB does not merely work hard on extreme overclocking. Compared to A320 motherboard memory A-XMP profile, MSI does have great improvement on performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. CORE BOOST Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

General

Brand:	MSI
Release date:	September 2020
Categories:	Computers > Components > Motherboards Promotions
LSN:	XE8-FA4-QC2-1
Barcode:	0824142226063
Component For:	PC
Model Number:	A520M PRO

Supported CPU

CPU Socket Type:	Socket AM4
Processor Series:	3rd Generation AMD Ryzen™ 3 • 3rd Generation AMD Ryzen 5 • 3rd Generation AMD Ryzen™ 7 • 3rd Generation AMD Ryzen™ 9

Chipset

Chipset:	AMD A520
Chipset Family:	AMD

Memory

Channels Supported:	Dual-channel
ECC:	Yes
Maximum Memory Supported:	64 GB
Memory Standard:	DDR4-SDRAM
Non-ECC:	Yes
Slot Type:	DIMM
Supported Clock Speed:	1866 • 2133 • 2400 • 2667 • 2800 • 2933 • 3000 • 3066 • 3200 • 3466 • 3600 • 3733 • 3866 • 4000 • 4133 • 4266 • 4400 • 4466

Storage

SATA 6Gb/s:

4

Onboard

Audio Channels:	7.1 channels
Chassis Intrusion Detection:	Yes
Fan Connectors:	1
Front Panel Audio Connectors:	Yes
USB Ports:	2

Expansion Slots

PCI Express X16 Slots:

1

Rear Panel Ports

D-SUB / VGA:	1
DisplayPort:	1
Ethernet:	1
HDMI:	1
Mic In:	Yes
PS/2:	1
USB 2.0:	2
USB 3.0:	1

Power

Power Source:

ATX

Networking

Ethernet / LAN:	Yes
Ethernet Interface Type:	Gigabit Ethernet
Lan Chipset:	Realtek 8111H

Ports

USB 3.0 (3.1 Gen 1) Type-A Ports:

4

Physical Specification

Form Factor:	micro ATX
Item Depth (mm):	210
Item Height (mm):	65
Item Width (mm):	244
Weight (kg):	0.698
