MSI H610M-S PRO DDR4 m-ATX Motherboard (LGA 1700)

The MSI PRO H610M-S DDR4 is a business-oriented micro-ATX motherboard featuring the Intel H610 chipset with Core Boost, Memory Boost, Lightning Gen4, and Frozr AI Cooling. Designed for efficient and productive workflows, it supports Intel Core 14th/13th/12th Gen processors, Pentium Gold, and Celeron processors via the LGA 1700 socket.

It delivers stable functionality with high-quality assembly, optimized for professional tasks, office productivity, and light computing needs. Key highlights include up to 64GB DDR4 support, PCIe 4.0 for fast graphics and storage, Realtek Gigabit LAN, 7.1-channel HD audio, and user-friendly BIOS/software controls for fan management and system tuning.

PRO series motherboards emphasize reliability, expandability, and longevity with features like Steel Armor for GPU support and Lightning Gen4 PCI-E for up to 64GB/s bandwidth.

General

Brand:	MSI
Categories:	Computers > Components > Motherboards > Intel Promotions
LSN:	X9T-LQY-AS5-5
Barcode:
Model Number:	PRO H610M-S
Type:	Motherboard

Warranty

Warranty:

3 Years

Supported CPU

CPU Socket Type:	LGA 1700
CPU Type:	Intel Core 14th/13th/12th Gen processors, Pentium Gold, and Celeron processors

Memory

Channels Supported:	Dual Channel
Maximum Memory Supported:	64GB
Memory Standard:	DDR4
Number of Memory Slots:	2

Storage

SATA 6Gb/s:

2

Onboard

Audio Channels:	7.1-channel High Definition Audio
Audio Chipset:	Realtek ALC897 codec
BIOS Features:	AMI UEFI BIOS with MSI Click BIOS 5

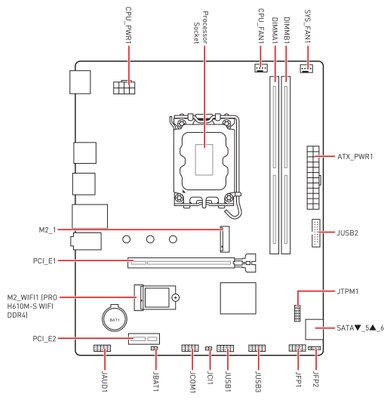

Internal I/O Connections:	2x Front panel headers (JFP1/JFP2) • 1x Front audio header (JAUD1) • 1x Chassis intrusion header (JCI1) • 1x COM port header (JCOM1) • 1x TPM 2.0 module header • 1x Clear CMOS jumper
USB Ports:	2x USB 3.2 Gen1 5Gbps Type-A • 4x USB 2.0
Video Chipset:	Integrated graphics support via CPU (e.g., Intel UHD Graphics)

Expansion Slots

M2 Slots:	1
PCI Slots:	- 1x PCIe 4.0 x16 (from CPU, for graphics) • 1x PCIe 3.0 x1 (from chipset)

Rear Panel Ports

Audio Ports:	3x Audio jacks (line-in, line-out, mic-in)
PS/2:	1
USB 2.0:	4
USB 3.0:	2
Video Ports:	1x HDMI port

Other Features

Power Pin:

1x Power Connector(ATX_PWR) • 1x Power Connector(CPU_PWR)

Bundled Software

Bundled Software:

MSI Center software

Networking

Lan Chipset:

Realtek RTL8111H Gigabit Ethernet LAN (1Gbps)

Package Contents

Package Contents:

MSI PRO H610M-S DDR4 motherboard • 1x Quick installation guide • 1x I/O shield/backplate • 2x SATA cables (data cables for storage connections) • 1x Driver DVD (with software and utilities)

Physical Specification

Form Factor:	Micro-ATX
Item Height (mm):	236.16
Item Width (mm):	236.16

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

Features:

• Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.

CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
