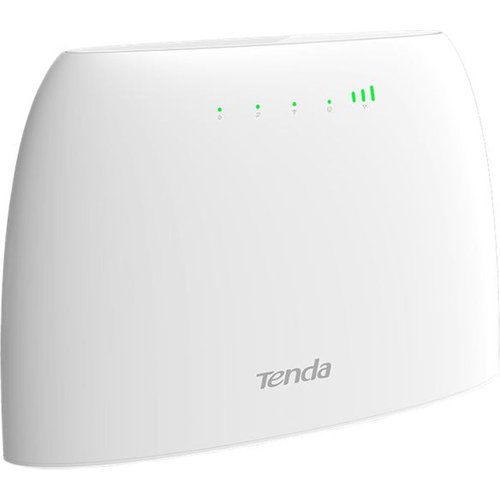

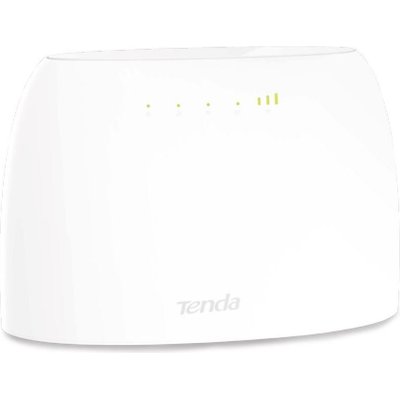

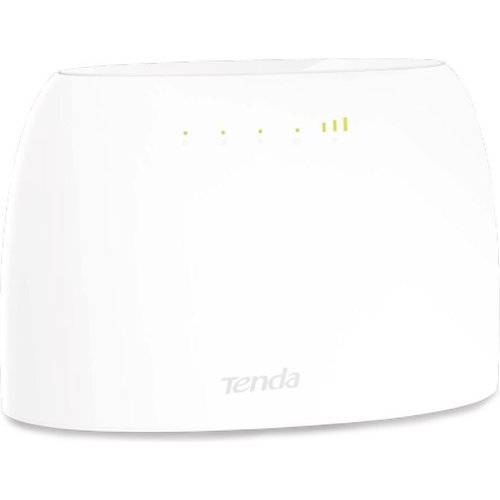

Tenda 4G03 N300 Wi-Fi 4G LTE Router

TENDA N300 Wi-Fi 4G LTE Router

Wiring free Broadband access wherever you are
With LTE Advanced signal coverage for best performance and allows you to receive Internet access without cable and fiber ,it is the ideal choice for remote areas such as rural and suburban ,temporary store,holiday home ,giving devices ability to access to the Internet wherever and whenever the user is located.

Fast 4G broadband for smoother experience
The Tenda 4G03 delivers maximum speeds of LTE CAT4 150 Mbps,you can enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats.

Stronger and Wider Wi-Fi Signal
High power gain wireless signal via 2.4 GHz band enlarge your Wi-Fi coverage, and Beamforming technology makes Wi-Fi signal of 4G03 outstanding behind multiple walls.

Share your Wi-Fi up to 32 devices
Thanks to a powerful 880MHz and 28nm processor ,it shares the Wi-Fi up to 32 devicees base on dependable network.

Failover between the Ethernet and 4G Connection
If the fixed internet connection should fail, this modem can easily switch to a 3G or 4G network automatically;In another way, the Internet can be replaced normally.

Instantly access a mobile network with a Mini SIM card
Access a mobile network instantly just with an authorized Mini SIM cardr.

General

Brand:	Tenda
Series:	4G03
Release date:	July 2020
Categories:	Computers > Accessories Computers > Networking > Modems & Routers > 3G & LTE Modem Routers and Hotspots Promotions Computers > Networking > Modems & Routers > Network Routers
LSN:	XV5-D1G-M5L-7
Barcode:	6932849430370
Colour:	White
Model Number:	4G03
Plug and Play:	Yes
Type:	Router

Connectivity

3G:	Yes
4G:	Yes

Security

Security:	WPA-PSK • WPA2-PSK • WPA/WPA2
Security Algorithms:	WEP • WPA • WPA-PSK • WPA2 • WPA2-PSK

Other Features

Firewall Security :

Yes

Power

External Power Adapter:	Yes
Output Current:	1 A
Output Voltage:	9 V
Power Source:	AC • DC

Specification

Data Rates:	300Mbps
Frequency Band:	2.4GHz
Interface:	Power on/off • WPS/Reset
Network Protocols:	FDD-LTE: B1/B3/B5/B7/B8/B20/B28 • TDD-LTE: B38/B40/B41 • WCDMA: B1/B5/B8
Protocols / Topology:	LTE CAT.4
QOS Support:	Yes
Standards:	802.11b/g/n
Standards:	FDD-LTE • TDD-LTE • WCDMA
WPA:	WPA-PSK • WPA2-PSK • WPA/WPA2

Antenna

Antenna:	2 x Internal 4G/3G Antennas • 2 x Internal Wi-Fi Antennas
Antenna Quantity:	4

Management Features

Web-Based Management:

Yes

Ethernet LAN

Cabling Technology:	10/100Base-T(X)
Ethernet Interface Type:	Fast Ethernet
Ethernet LAN:	Yes
Ethernet LAN Data Rates:	10 • 100 Mbit/s
Ethernet LAN Ports (RJ-45):	2

Wireless LAN

WIFI Band:	Single-band (2.4 GHz)
Wi-Fi:	Wi-Fi 4 (802.11n)
Wi-Fi Data Rate (Max):	300 Mbit/s
Wi-Fi Standards:	802.11b • 802.11g • Wi-Fi 4 (802.11n)

Protocols

DHCP Client:	Yes
DHCP Server:	Yes

Ports

DC-In Jack:	Yes
WAN Connection:	Yes

Package Contents

AC Adapter Included:	Yes

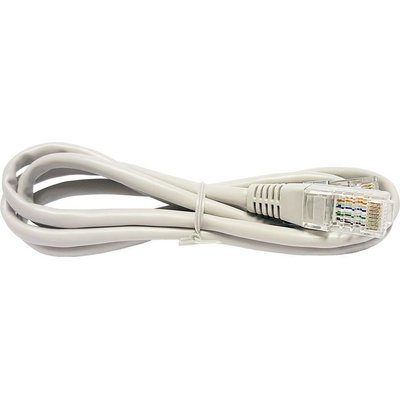

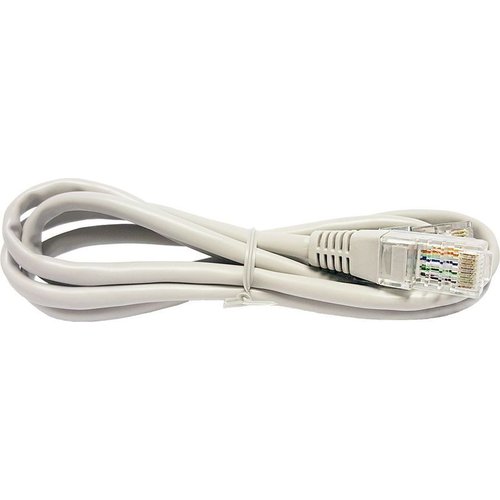

Cables:	LAN (RJ-45)
Package Contents:	1 x 4G LTE Router • 1 x Ethernet cable • 1 x Power adapter • 1 x Quick Installation Guide

Operational Conditions

Storage Temperature (T-T):

-30 - 70 °C

Physical Specification

Item Depth (mm):	185
Item Height (mm):	60
Item Width (mm):	126
LEDs:	Power • Wi-Fi • LAN • Internet • 4G/3G Signal Strength (3 Bars)
On/Off Switch:	Yes

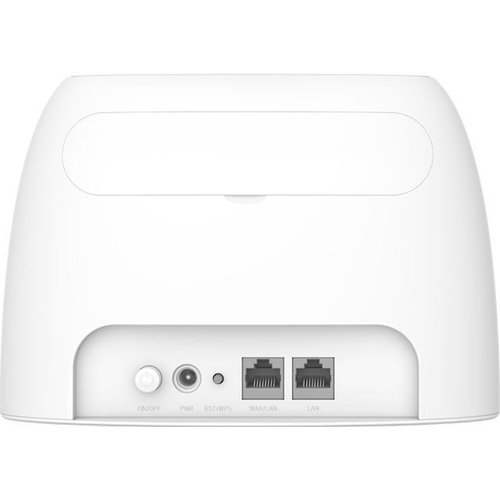

Ports:	1 x 10/100 Mbps LAN/WAN Port • 1 x 10/100 Mbps LAN Port • 1 x 2FF SIM Card Slot
Reset Button:	Yes
SIM Card Slot:	Yes
WPS Button:	Yes
Weight (kg):	0.256

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

• 4G Category: LTE CAT.4
• 4G/3G standards: FDD-LTE,TDD-LTE,WCDMA
• Working band: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 | TDD-LTE: B38/B40/B41 | WCDMA: B1/B5/B8
• Max 4G speed: DL:150Mbps UL:50Mbps
• Wi-Fi standards: 802.11b/g/n
• Wi-Fi frequency: 2.4GHz
• Wi-Fi speed: 300Mbps
• Wi-Fi transmit Power: up to 20dBm
• Interface: 1 × 10/100 Mbps LAN/WAN Port | 1 × 10/100 Mbps LAN Port | 1 × 2FF SIM Card Slot
• Button: Power on/off | WPS/Reset
• Antennas: 2 x Internal 4G/3G Antennas | 2 x Internal Wi-Fi Antennas
• LED indicators: Power | Wi-Fi | LAN | Internet | 4G/3G Signal strength(3 Bars)
• Dimensions (LxWxH): 185 x 126 x 60mm
• Weight: About 256g

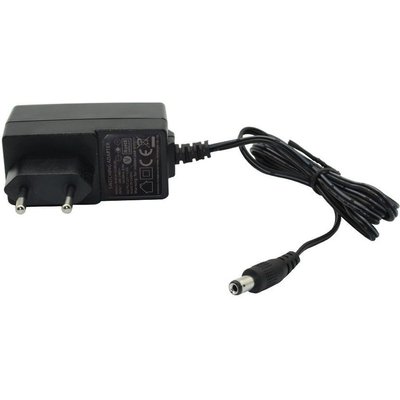

• Power supply: Power adapter:Input power AC 100V-240V 50/60Hz | Output power:DC 9V==1A
• WAN Type: 4G/3G or Wired | Support Failover
• Wi-Fi functions: Wi-Fi name & Wi-Fi key | Channel & Bandwidth | Guest Network | Wi-Fi schedule | Wireless repeating | Transmit power | WPS
• Wi-Fi security: WPA-PSK, WPA2-PSK, WPA/WPA2
• Software features: APP/WEB | DHCP Server | VPN(PPTP Client/L2TP Client/PPTP Server) | Firewall | QOS | Upgrade firmware from local or OTA | IPV4/IPV6
• Certifications: CE | ROHS | SIRIM
• Temperature: Operating Temperature : 0℃~40℃| Storage Temperature : -40℃ ~70℃
• Humidity: Operating Humidity : 10 %~90% RH non-condensing | Storage Humidity : 5 %~ 90%RH non-condensing
