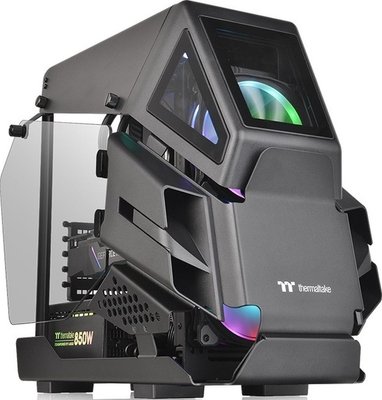

Thermaltake AH T200 Micro Tower

The Thermaltake AH T200 is a helicopter styled open frame micro chassis which comes with two 4mm tempered glass panels on left and right sides and can support motherboards up to Micro ATX. Thermaltake AH T200 Micro Chassis The AH T200, a smaller version of the AH T600, is the first micro case from the AH Series which is forged with a sturdy, air-force styled architecture with two large 4mm tempered glass panels on the left and right sides, and three 3mm tempered glass windows on the front. I/O ports are located at the top-front panel with a futuristic power button. Not only ensures outstanding ventilation but enables users to demonstrate their handwork and showcase their internal components. The AH T200 can hold up to two 140mm fans at the front and on top, 240mm or 280mm All-In-One CPU cooler at the front. The AH T200 Micro Chassis is one-of-a-kind that all users will notice, love, and desire. TT Premium To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. Tt LCS Certified Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment. Helicopter Inspired Design The AH T200 is a helicopter inspired micro ATX case constructed with solid steel all around, and side vents on each end. It comes with two beautifully designed 4mm tempered glass panels on each side and three 3mm small tempered glass windows at the front not only helps you showcase interior components but also highlights the helicopter design concept. Tempered Glass Panels The AH T200 comes with two 4mm tempered glass panels, thicker and more scratch resistant when compared to standard acrylic. Swinging doors on the left and right sides allow users to easily access the internal components as well as the ability to remove the doors entirely for complete access to the internals. On top of this, the enlarged window design enables you to display and admire all your components in their full RGB glory. Sophisticated Space Design Sophisticated and special interior space design of the AH T200 provides enough capacity for PC componets placement and cable management. Outstanding Airflow Thanks to the dedicated open frame design of the AH T200, the airflow within the case moves smoothly, ensuring the interior temperature stays low at all times. Expansion and Cooling Solution The AH T200 has good expandability. It can support a CPU cooler with a maximum height of 150mm, VGA with maximum length of 320mm, a power supply with a length of up to 180mm, and two 3.5” or three 2.5” HDD (3.5” HDD thickness limitation: 22mm). Although the AH T200 is a compact micro case, it is still optimized for good cooling solutions. It is able to house up to two 120mm or two 140mm fans at the front and on top and 240mm or 280mm AIO cooler at the front. Handy I/O Ports Two 3.0 USB and one USB 3.1 (Gen 2) Type C ports placed at the panel to grant direct access when needed. DMD: Dismantlable Modular Design Strip your case down to the bones and install elements when and as you need them with our modular design. The AH T200 features modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

General

Brand:	Thermaltake
Release date:	September 2020
Categories:	Computers > Components > Computer Cases > Micro-Tower Cases
LSN:	XNK-YHT-AE2-7
Barcode:	0841163075746
Model Number:	CA-1R4-00S1WN-00
Type:	PC

Case Type

Form Factor:

Micro Tower

Configuration

Expansion Slots:	5
Material:	SPCC
Max GPU Length:	32
Maximum CPU Cooler Height:	15
Maximum PSU Length:	18
Motherboard Compatibility:	Micro-ITX • Mini-ITX
Number of 2.5" Bays:	3
Number of 3.5" Bays:	2
PSU Position:	Bottom
Side Panel:	Yes
Supported Hard Drive Sizes:	2.5 • 3.5"

Cooling System

Front Fan Diameter Supported:	120 • 140
Front Fans - Max:	2
Top Fan Diameter Supported:	120 • 140
Top Fans - Max:	2

Other Features

Audio Input:	Yes
Audio Output:	Yes

Ports

USB 3.0 (3.1 Gen 1) Type-A Ports:	2
USB 3.1 (Gen 2) Type-C Ports:	1

Physical Specification

Item Depth (mm):	551.5
Item Height (mm):	444.2
Item Width (mm):	282
Reset Button:	Yes
Weight (kg):	10.8
