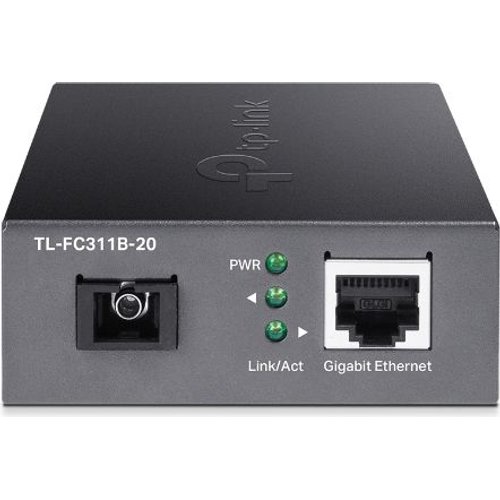

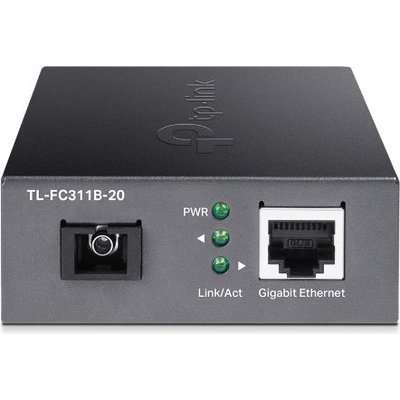

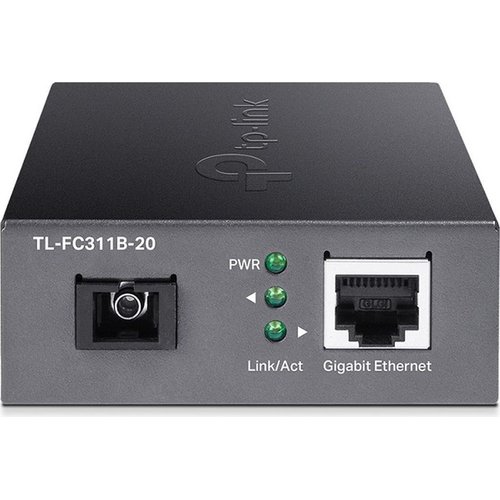

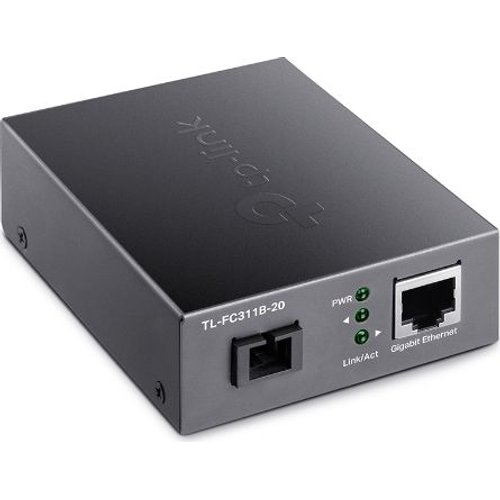

TP-Link Gigabit WDM Media Converter

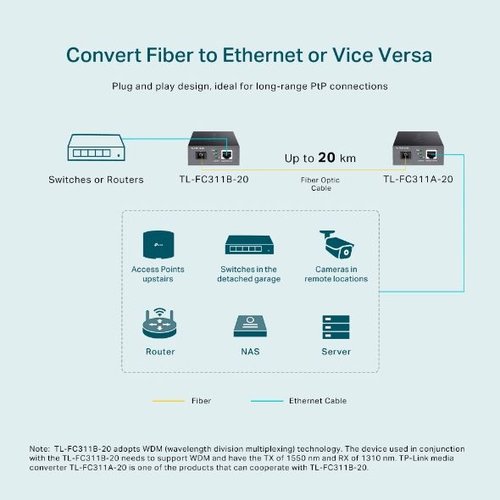

What This Product Does TL-FC311B-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. How This Product Works TL-FC311B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-20 is one of the products that can cooperate with TL-FC311B-20. Other Features Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.

General

Brand:	TP-Link
Release date:	November 2020
Categories:	Computers > Accessories Computers > Networking
LSN:	X3M-9TY-U5L-1
Barcode:	6935364010591
Colour:	Black
Model Number:	TL-FC311B-20

Performance

Data Transfer Rate:

1000 Mbit/s

Data Transfer

Max Data Transfer Rate:

1000 Mbit/s

Connectivity

Connectivity Technology:

Wired

Power

Output Current:	0.6 A
Output Voltage:	5 V

Specification

Standards:

IEEE 802.3 • IEEE 802.3ab • IEEE 802.3i • IEEE 802.3u • IEEE 802.3x • IEEE 802.3z

Ethernet LAN

Ethernet LAN Data Rates:	10 • 100 • 1000 Mbit/s

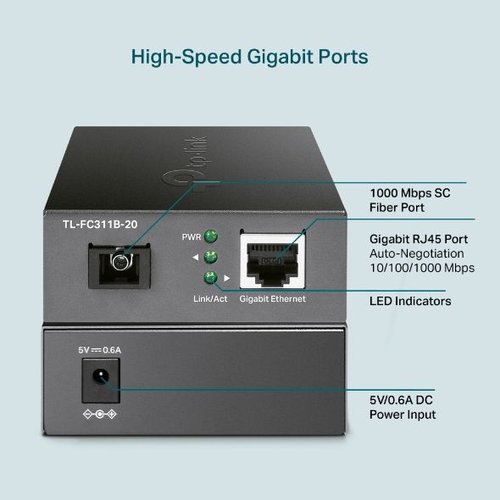

Ethernet LAN Ports (RJ-45):	1

Ports

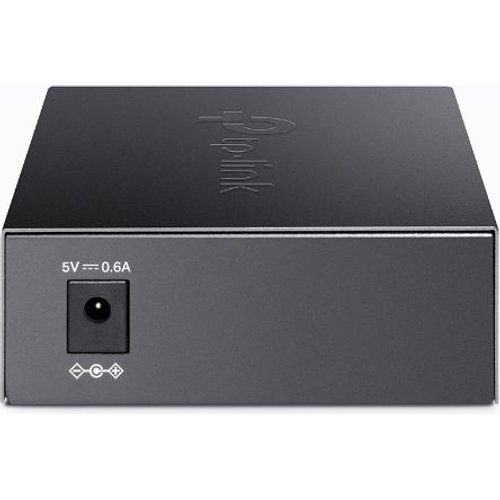

DC-In Jack:	Yes
Fiber Ports:	1

Package Contents

AC Adapter Included:	Yes
Manuals:	Yes

Operational Conditions

Storage Temperature (T-T):

-40 - 70 °C

Physical Specification

Item Depth (mm):	73
Item Height (mm):	27
Item Width (mm):	94.5
LEDs:	Activity • Link • Power
