TP-Link RE505X AX1500 Wi-Fi Range Extender

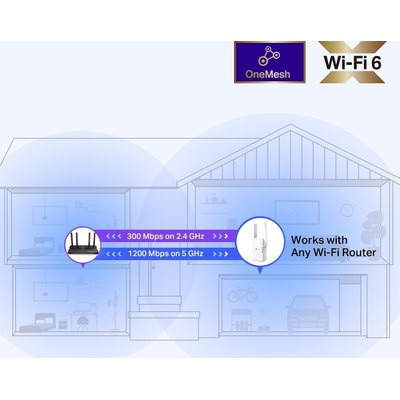

Expand Coverage of the Fastest Next-Gen Wi-Fi AX1500 Range Extender Cutting-Edge Wi-Fi 6 The latest Wi-Fi technology eliminates annoying lag, endless loading, and dead spots. Enjoy the future of faster network loads and more connections. Fill Every Inch of Your Home with Wi-Fi 6 The 505X wirelessly connects to your router, boosting your Wi-Fi 6 signal throughout your home so you can binge watch your favorite show anywhere. Dual Band, More Benefits Adaptive Path Selection Keeps your network running at top-speed by automatically choosing the fastest connection path to the router. High Speed Mode Use both Wi-Fi bands to enjoy super-fast connections —ideal for HD streaming and gaming. Built-In Access Point Mode RE505X is more than just a wireless range extender. Simply plug an Ethernet cable into its port to easily turn that wired connection into a high-speed dual band wireless signal. TP-Link OneMesh OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection. Smart Roaming Uninterrupted streaming when moving around your home One Wi-Fi Name No more switching Wi-Fi network names Easy Creation OneMesh Router and OneMesh Range Extenders pair instantly Unified Management Manage the entire network all from the TP-Link Tether app Enjoy an AX Mesh Network with Your Existing Router Want a Mesh network? Hesitating whether you should replace your current router with a new Mesh set? Update your existing TP-Link router’s firmware to the OneMeshTM version—no need to replace anything. Connect the RE505X to the router. Enjoy your Mesh network. Control at Your Fingertips Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.

General

Brand:	TP-Link
Release date:	February 2020
Package Dimensions:	202 x 125 x 96mm (L x W x H)
Categories:	Computers > Accessories Computers > Networking > Wireless Networking > Range Extenders
LSN:	XPB-HTY-U5L-6
Barcode:	6935364089511
Colour:	White
Model Number:	RE505X V1
Type:	Network repeater

Performance

Data Transfer Rate:

1200 Mbit/s

Security

Security Algorithms:

64-bit WEP • 128-bit WEP • WPA-PSK • WPA2-PSK

Specification

Standards:

IEEE 802.11a • IEEE 802.11ac • IEEE 802.11ax • IEEE 802.11b • IEEE 802.11g • IEEE 802.11n

Antenna

Antenna:	External
Antenna Quantity:	2

Ethernet LAN

Cabling Technology:	10/100/1000Base-T(X)
Ethernet LAN Data Rates:	10 • 100 • 1000 Mbit/s
Ethernet LAN Ports (RJ-45):	1

Wireless LAN

WIFI Band:	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi:	Yes
Wi-Fi Data Rate (Max):	1300 Mbit/s
Wi-Fi Standards:	802.11a • 802.11b • 802.11g • Wi-Fi 4 (802.11n) • Wi-Fi 5 (802.11ac) • Wi-Fi 6 (802.11ax)

Package Contents

Manuals:	Yes
Package Type:	Box
Quick Start Guide:	Yes

System Requirements

Linux Operating Systems Supported:	Yes
Mac Operating Systems Supported:	Yes
Windows Operating Systems Supported:	Windows 10 • Windows 10 Education • Windows 10 Education x64 • Windows 10 Enterprise • Windows 10 Enterprise x64 • Windows 10 Home • Windows 10 Home x64 • Windows 10 IOT Core • Windows 10 IoT Enterprise • Windows 10 Pro • Windows 10 Pro x64 • Windows 10 x64 • Windows 2000 • Windows 2000 Professional • Windows 7 • Windows 7 Enterprise • Windows 7 Enterprise x64 • Windows 7 Home Basic • Windows 7 Home Basic x64 • Windows 7 Home Premium • Windows 7 Home Premium x64 • Windows 7 Professional • Windows 7 Professional x64 • Windows 7 Starter • Windows 7 Starter x64 • Windows 7 Ultimate • Windows 7 Ultimate x64 • Windows 7 x64 • Windows 8 • Windows 8 Enterprise • Windows 8 Enterprise x64 • Windows 8 Pro • Windows 8 Pro x64 • Windows 8 x64 • Windows 8.1 • Windows 8.1 Enterprise • Windows 8.1 Enterprise x64 • Windows 8.1 Pro • Windows 8.1 Pro x64 • Windows 8.1 x64 • Windows 98SE • Windows Vista • Windows Vista Business • Windows Vista Business x64 • Windows Vista Enterprise • Windows Vista Enterprise x64 • Windows Vista Home Basic • Windows Vista Home Basic x64 • Windows Vista Home Premium • Windows Vista Home Premium x64 • Windows Vista Ultimate • Windows Vista Ultimate x64 • Windows Vista x64 • Windows XP • Windows XP Home • Windows XP Home x64 • Windows XP Professional • Windows XP Professional x64

Certifications

Certifications:

FCC • RoHS

Physical Specification

Item Depth (mm):	46
Item Height (mm):	124.8
Item Width (mm):	74
LEDs:	Power • WAN • WLAN
On/Off Switch:	Yes
Reset Button:	Yes
