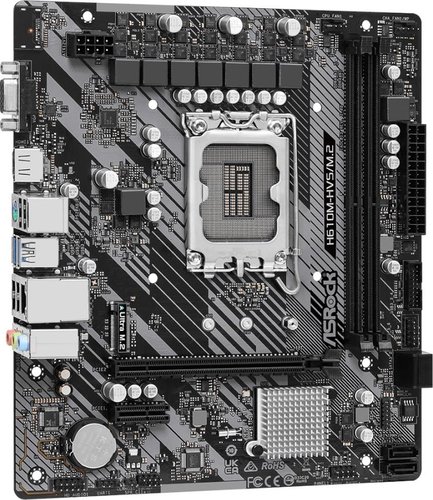

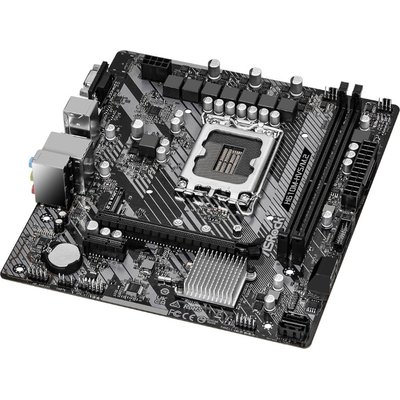

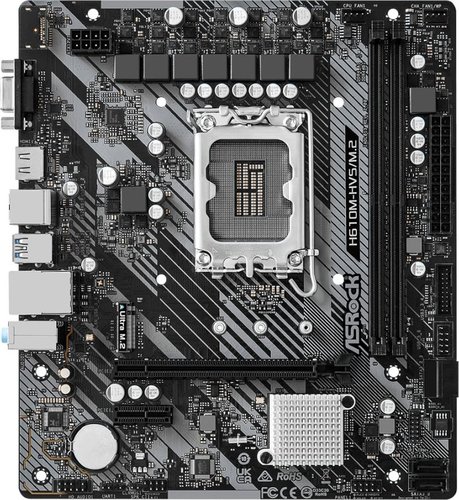

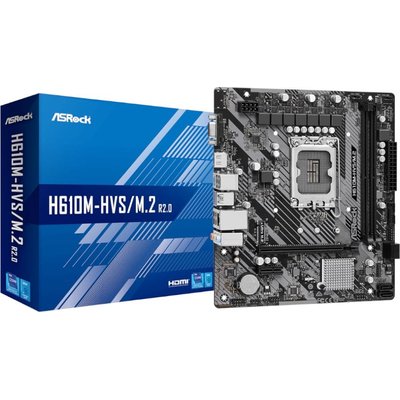

ASRock H610M-HVS/M.2 R2.0LGA 1700 m-ATX Motherboard

Digi Power Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced. Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Premium Power Choke Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

General

Brand:	Asrock
Release date:	August 2022
Categories:	Computers > Components > Motherboards Promotions
LSN:	X78-5QA-NND-4
Barcode:	4710483939914
Component For:	PC
Model Number:	90-MXBJJ0-A0UAYZ

Supported CPU

CPU Socket Type:	LGA 1700
Processor Series:	Intel® Core™ i3 • Intel® Core™ i5 • Intel® Core™ i7

Chipset

Chipset:	Intel H610
Chipset Family:	Intel

Memory

Channels Supported:	Dual-channel
Maximum Memory Supported:	64 GB
Memory Standard:	DDR4-SDRAM
Non-ECC:	Yes
Slot Type:	DIMM
Supported Clock Speed:	3200
Unbuffered Memory:	Yes

Onboard

Audio Channels:	7.1 channels
Chassis Intrusion Detection:	Yes
EPS Power Connector (8-Pin):	Yes
USB Ports:	2

Expansion Slots

SLI / Crossfire Support:

Not supported

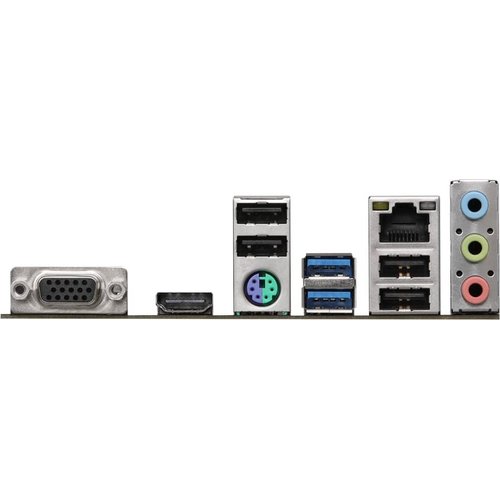

Rear Panel Ports

D-SUB / VGA:	1
Ethernet:	1
HDMI:	1
Headphone Out:	1
Mic In:	Yes
PS/2:	1
USB 2.0:	4
USB 3.0:	2

BIOS

BIOS Memory Size:	128 Mbit
BIOS Type:	UEFI AMI

Networking

Ethernet / LAN:	Yes
Ethernet Interface Type:	Gigabit Ethernet
Lan Chipset:	Realtek RTL8111H

Ports

USB 3.0 (3.1 Gen 1) Type-A Ports:

2

Package Contents

Cables:

SATA

System Requirements

Windows Operating Systems Supported:

Windows 10 Education x64 • Windows 11 x64

Certifications

Certifications:

- FCC • CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Physical Specification

Form Factor:	micro ATX
Item Depth (mm):	188
Item Width (mm):	223
