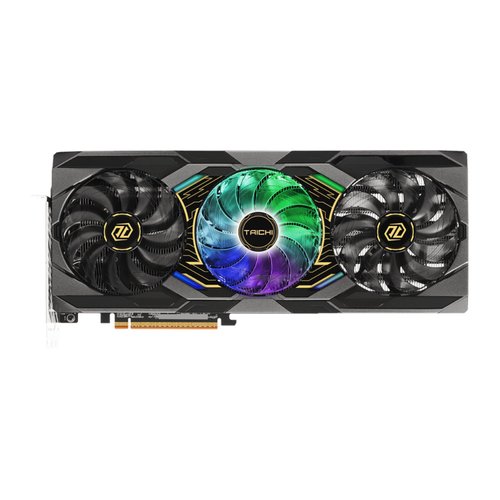

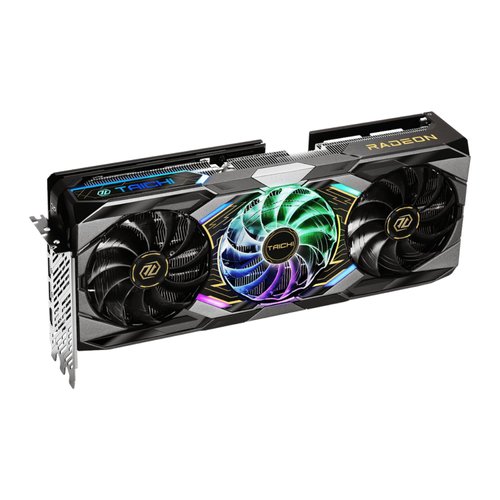

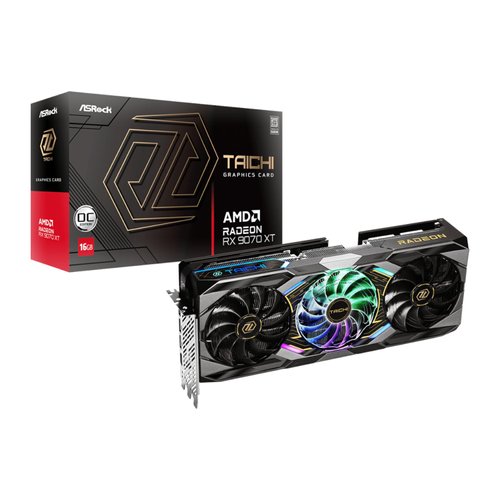

The ASRock AMD Radeon RX 9070 XT Taichi 16GB OC is a
high-performance graphics card designed for enthusiasts who demand both
cutting-edge power and premium aesthetics. Built on AMD’s RDNA™ 4
architecture, it delivers next-level gaming performance with 64 compute
units, hardware-accelerated ray tracing, and AI-driven optimizations.
The boost clock reaches up to 3100MHz, ensuring ultra-smooth frame
rates and stunning visuals for 4K gaming and content creation. Equipped
with 16GB of GDDR6 memory on a 256-bit bus, this GPU is built to handle
the most demanding workloads and high-resolution gaming experiences.

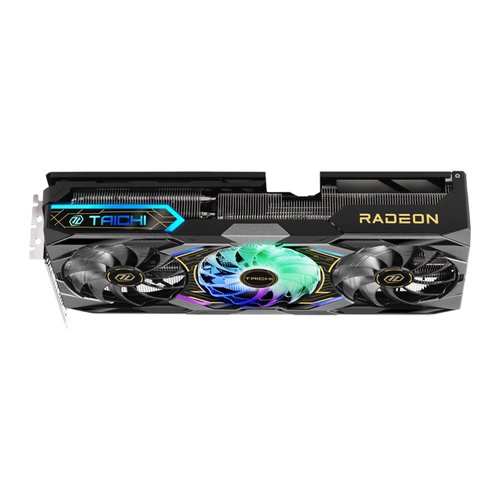

The Taichi 3X Cooling System ensures superior thermal efficiency,
utilizing three advanced fans to maximize airflow. The centre fan spins
in reverse to reduce turbulence and enhance heat dissipation, while
ASRock’s Striped Ring Fan design increases lateral air intake for
improved cooling performance. V-shaped cutting fins and air vents guide
airflow efficiently, reducing heat buildup and keeping temperatures low
even under heavy loads. Additionally, intelligent fan control ensures
silent operation when temperatures are low, automatically adjusting for
optimal cooling when needed.
Heat management is further enhanced with a premium copper base
heatsink, which maximizes direct contact with the GPU for efficient
thermal transfer. The consolidated heat pipes and high-quality thermal
pads effectively distribute heat, preventing hotspots and maintaining
stable performance. ASRock’s precision screw torque assembly optimizes
cooler mounting pressure, balancing thermal efficiency and component

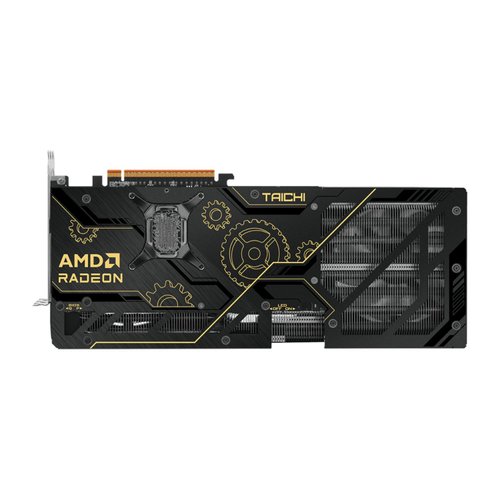

safety to extend the lifespan of the GPU. A reinforced metal backplate
not only strengthens the structure to prevent PCB bending but also
enhances cooling with strategically placed thermal pads and vents.
Aesthetically, the Taichi RX 9070 XT stands out with its integrated
ARGB lighting, offering customizable and synchronized illumination
through Polychrome SYNC. Users can further expand their lighting setup
with an ARGB pin-header, connecting additional RGB strips and devices
for a fully immersive build. With PCIe 5.0 support, high-speed
DisplayPort 2.1a and HDMI 2.1b connectivity, and an 850W recommended
PSU, this powerhouse GPU is ready to push the limits of gaming,
streaming, and content creation with exceptional performance and style.
General
Warranty
Card Specification
| Interface Type: |
PCIe 5.0 x16
|
| Number of Required Slots: |
3
|
Chipset
| AMD Stream Processors: |
4096
|
| Core Clock: |
2570 MHz
|
| GPU Boost Clock: |
3100 MHz
|
| GPU Chip Manufacturer: |
AMD
|
| GPU Class: |
Radeon RX 9070 XT
|
Memory
| Effective Memory Clock: |
20 Gbps
|
| Memory Interface: |
256-bit
|
| Memory Size: |
16GB
|
| Memory Type: |
GDDR6
|
3D API
| DirectX Version: |
DirectX 12 Ultimate
|
| OpenGL: |
OpenGL 4.6
|
Power
| Power Connector: |
1x 12V-2x6 16-Pin
|
| Recommended PSU Capacity: |
750W
|
Specification
| Max Resolution: |
7680 x 4320
|
Ports
| DisplayPort Ports: |
3x DisplayPort 2.1a
|
| HDCP Ready: |
Yes
|
| HDMI Ports: |
1x HDMI 2.1b
|
Package Contents
| Package Contents: |
ASRock Radeon RX9070 XT Taichi 16G OC – Black x1
•
</br></li>
<li><br>Quick Installation Guide x1</br></li>
</ul>
|
Physical Specification
| Backplate included: |
Yes
|
| Item Depth (mm): |
140
|
| Item Height (mm): |
61
|
| Item Width (mm): |
330
|
| Weight (kg): |
1.554
|
