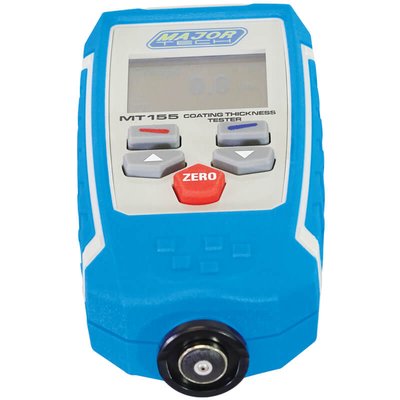

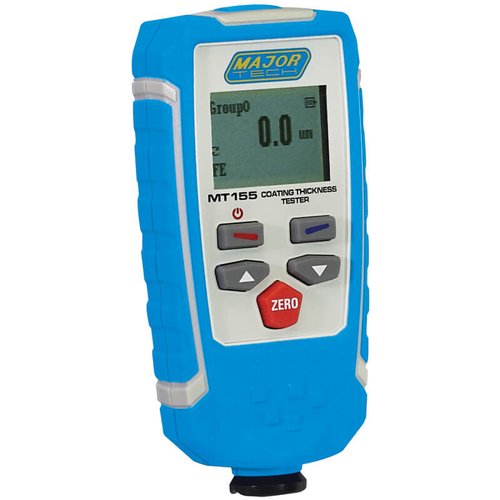

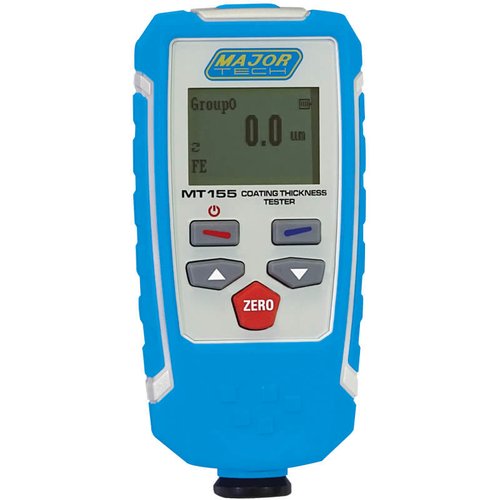

Major Tech MT155 Coating Thickness Tester (Blue)

The MT155 is a compact and handy gauge, designed for non-destructive, fast and precise coating thickness measurements. It is adaptable and can be used on special geometries or on materials with special properties. The coating thickness gauge works either on the magnetic induction principle or on the Eddy current principle, depending on the type of probe used. The MT155 has 31 working modes, displaying the measured values and user information on the LCD, the backlight ensures easy reading of screen data in low light conditions. The probe systems are spring-mounted in the probe sleeve, this ensures safe and stable positioning of the probe and constant pressure. The hemispherical tip of the probe is made of hard and durable material.

General

Brand:	Major Tech
Series:	Testers
Categories:	Promotions DIY > Tools & Machinery > Measuring Tools
LSN:	XPE-SBV-HFH-3
Barcode:	6008229012075
Colour:	Blue
Model Number:	MT155

Warranty

Warranty:

6 Months

Package Contents

Package Contents:

1x MT155 Tester • Hard Carrying case • 2 x AAA Batteries • Instruction manual • Software CD • USB Cable • Coating Thickness Standards

Physical Specification

Item Depth (mm):	190
Item Height (mm):	270
Item Width (mm):	76
Weight (kg):	0.862

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

Dual technology

Automatic selection of magnetic induction or Eddy Current measurement techniques

Memorize 1500 readings

Non magnetic coatings (paint, zinc) on steel

Insulating coatings (paint) on non-ferrous metals

Non-ferrous metal coatings on insulating substrates

Continuous & Single Mode

Working modes: Direct & Group

Static display: Min / Max / Average/ No / S.Dev

High / Low alarm

USB Interface

Specifications:

Function : Range : Resolution

Sensor Probe : Fe : Non-Fe

Working Principle : Magnetic Induction : Eddy current principle

Measuring Range : 0-1350μm, 0-53.1 mils : 0-1350μm, 0-53.1 mils

Guaranteed Tolerance : 0-1000μm ±(2.5%+2μm), 0-39.3mils ±(2%+0.08mils) 0-1000μm ±(2.5%+2μm), 0-39.3mils ±(2%+0.08mils)

Resolution Precision : 0μm – 100um (0.1 urn), 0μm – 100um (0.1 urn)

Minimum Curvature Radius : 1.5mm : 3.0mm

Diameter of Minimum Area : 7.0mm :5.0mm

Basic Critical Thickness : 0.5mm : 0.3mm

Calibration Procedure: Yes

Digital Display: LCD Display

Bargraph: Yes

Overrange Indication: Yes

Min Max: Yes

Memory: 1500 readings

Interface: USB for PC analysis software

Back Light: Yes

Enclosure Moulded: Casing

Low Battery Indication: Yes

Batteries: 2 x AAA

Weight: 110g

Dimensions: 113.5 x 54 x 27mm
