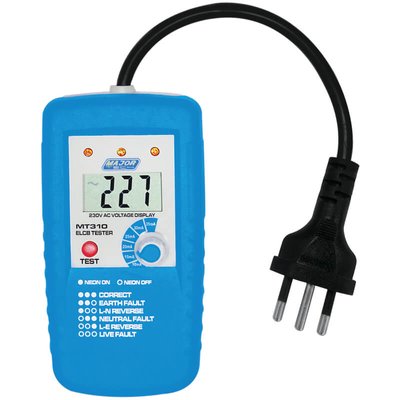

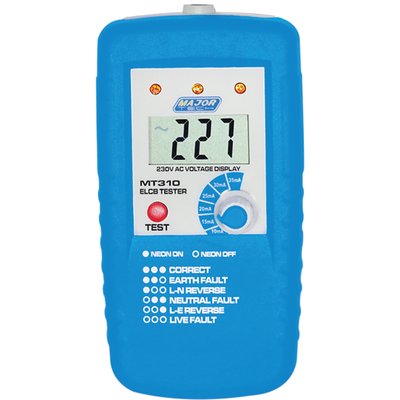

Major Tech MT310 Socket ELCB Tester (Blue)

The MT310 Earth Leakage Tester is a compact, lightweight and easy to use socket, polarity and earth leakage tester that tests 3-wire 216V AC – 264V AC circuits and Earth Leakage Circuit Breakers. A unique feature is the AC Voltage indication on the LCD display. It also features a milli-amp (mA) trip setting with a separate test button. The unit can be set from 10mA, used for testing saturation and to eliminate nuisance tripping, to 35mA. The bright neon indication assists the user in confirming the wiring status of the circuit under test. Simply plug the MT310 into a wall socket and the results are clearly displayed. For additional safety, the MT310 is rated at CAT IV 300V and CAT III 600V.

General

Brand:	Major Tech
Series:	Testers
Categories:	Promotions DIY > Tools & Machinery > Measuring Tools
LSN:	XHY-RBV-HFH-5
Barcode:	6008229007217
Colour:	Blue
Model Number:	MT310

Warranty

Warranty:

6 Months

Package Contents

Package Contents:

1x MT310 Tester • Instruction Manual

Physical Specification

Item Depth (mm):	60
Item Height (mm):	270
Item Width (mm):	170
Weight (kg):	0.307

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

Compact, lightweight and easy to use

Correct Wiring Indication with neon lights

Operates on 216V AC – 264V AC systems

AC Voltage measurement on LCD display

Fixed current settings from 10mA to 35mA

Separate test button

Double injection rubber housing

Specifications:

Function : Range Accuracy

Voltage measurement : 150VAC to 245VAC : ± (10%)

Test current: 10, 15, 20, 25, 30, 35mA : ± (1.75mA @ 230VAC)

Frequency response: 50/60Hz

Socket polarity: Yes

Enclosure: Double Injection moulding

Display: LCD

Weight: 130g

Dimensions: 130 x 69 x 32mm

Safety Specs: IEC61010-1 CAT III 600V
