Major Tech MT190 Circuit Breaker Finder (Blue)

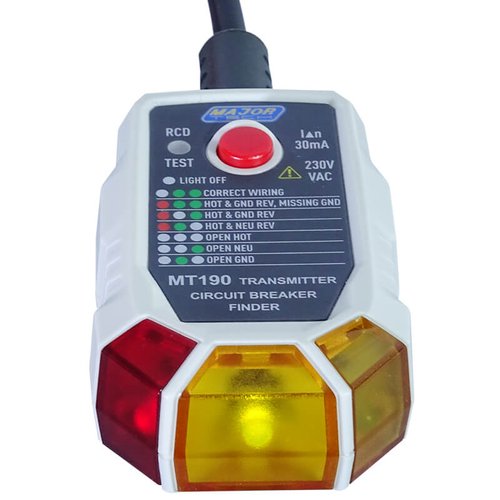

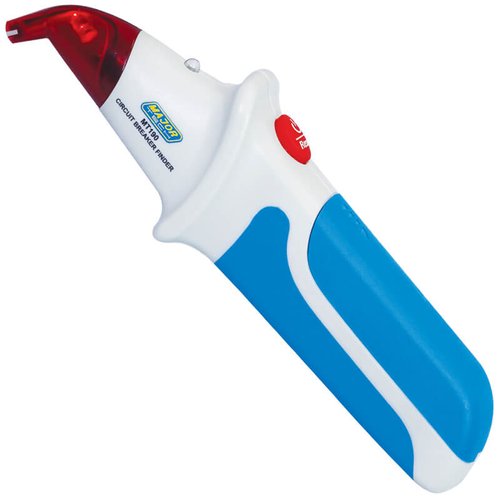

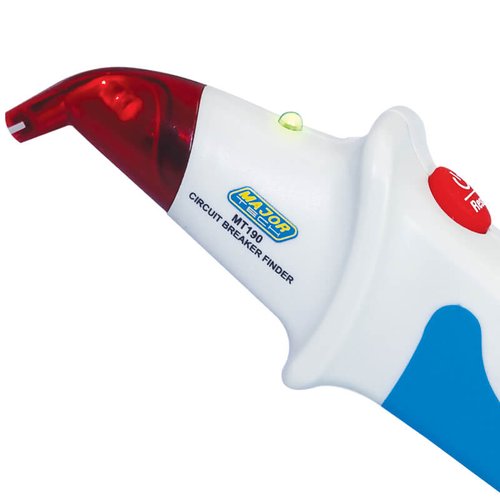

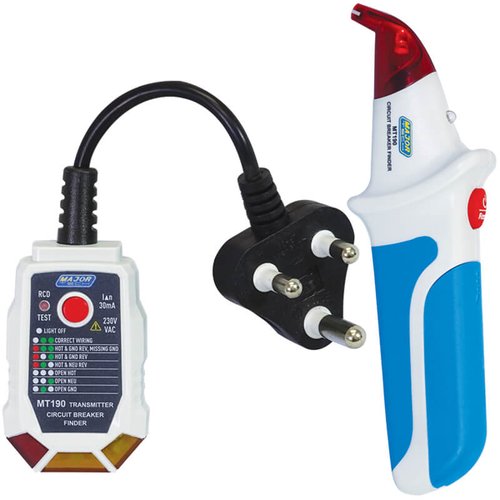

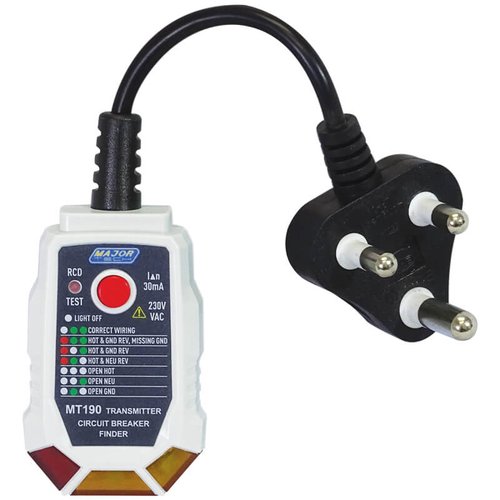

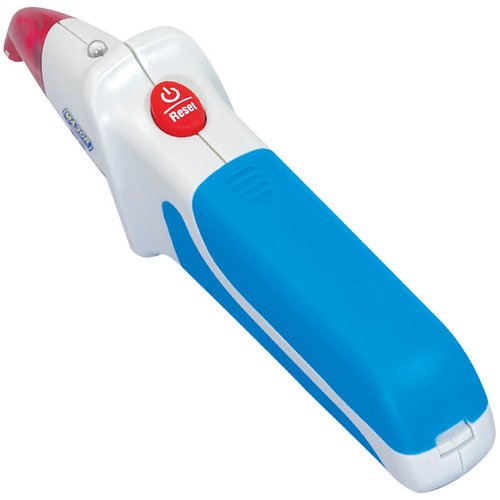

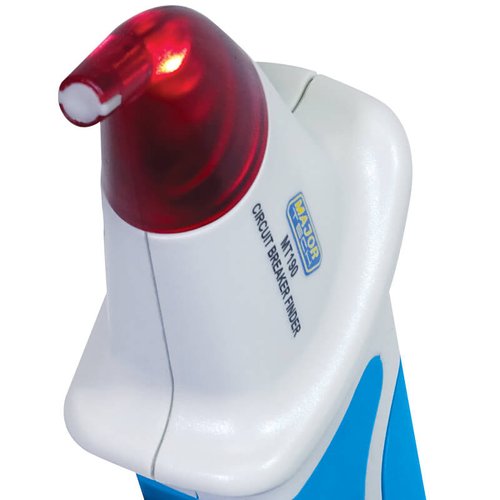

The MT190 is a Circuit Breaker Finder system that operates on energized circuits, consists of a Transmitter, which plugs into the socket on the circuit you wish to isolate and a Receiver Scanner. The Transmitter sends signals along the cable to the distribution board. The operator simply runs the Receiver Scanner along the circuit breakers or fuses, and the scanner will automatically identify the correct breaker by means of a green LED and a continuous buzzer tone. An added feature is the convenient chart printed on the Transmitter that helps determine the wiring condition of the socket outlet, based on the LED lights results. Conditions indicated are Correct Wiring, Open Ground, Reverse Polarity, Open Live, Open Neutral and reverse Live and Ground. There is also a 30mA RCD test function built into the MT190 Transmitter.

General

Brand:	Major Tech
Series:	Testers
Categories:	Promotions DIY > Tools & Machinery > Measuring Tools
LSN:	XPR-UBV-HFH-6
Barcode:	6008229036071
Colour:	Blue
Model Number:	MT190

Warranty

Warranty:

6 Months

Package Contents

Package Contents:

1x MT190 Tester • Instruction Manual • Carry Case

Physical Specification

Item Depth (mm):	210
Item Height (mm):	130
Item Width (mm):	60
Weight (kg):	0.415

Is the information for this product incomplete, wrong or inappropriate? Let us know about it.

Does this product have an incorrect or missing image? Send us a new image.

Is this product missing categories? Add more categories.

Automatic scanning technology

Identifies Circuit Breakers & Fuses

Microprocessor is self-calibrating

Operates on 240VAC 50Hz circuits

Built-in 30mA RCD Test in Transmitter

Correct wiring indication

Visual and audible indication

500m detection distance from the Receiver

Specifications:

Function : Range

MCB/Fuse Finding: Identifies MCB or fuse on live circuits

Transmitter Functions: Connect to mains automatically starts

Correct Wiring Indication: LED indication green and red

RCD 30mA Test: Yes

Frequency Range: 50Hz

Display: LED indication on transmitter

Receiver Functions: Three functions, On/Reset/Off

Beeper: Steady beep-testing red LED, continuous beep-strong signal Green LED

Display: LED indication on transmitter

Enclosure: Moulded casing

Low Battery Indication: Flashing

Battery: 9V

Weight Receiver: 148g

Weight Transmitter: 140g

Dimensions Receiver: 196 x 55 x 36mm

Dimensions Transmitter: 82 x 51 x 33mm

Safety Specs: CAT III 600V
